Complete with x 1 normally closed contact for use with single channel input safety relay or as part of a basic latching circuit.
For dual channel safety relay simply add EMAS C2 contact.
Additional signalling can be achieved with EMAS C1 normally open contacts.

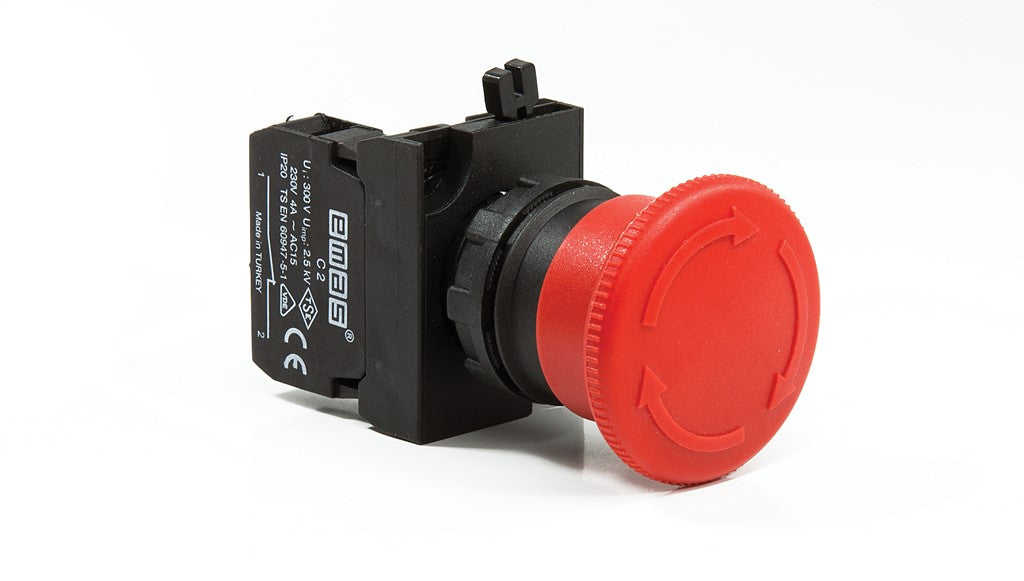

Product
Control Unit
Model
Emergency
Type
Turn to Release
Contact
1NC
Color
Red

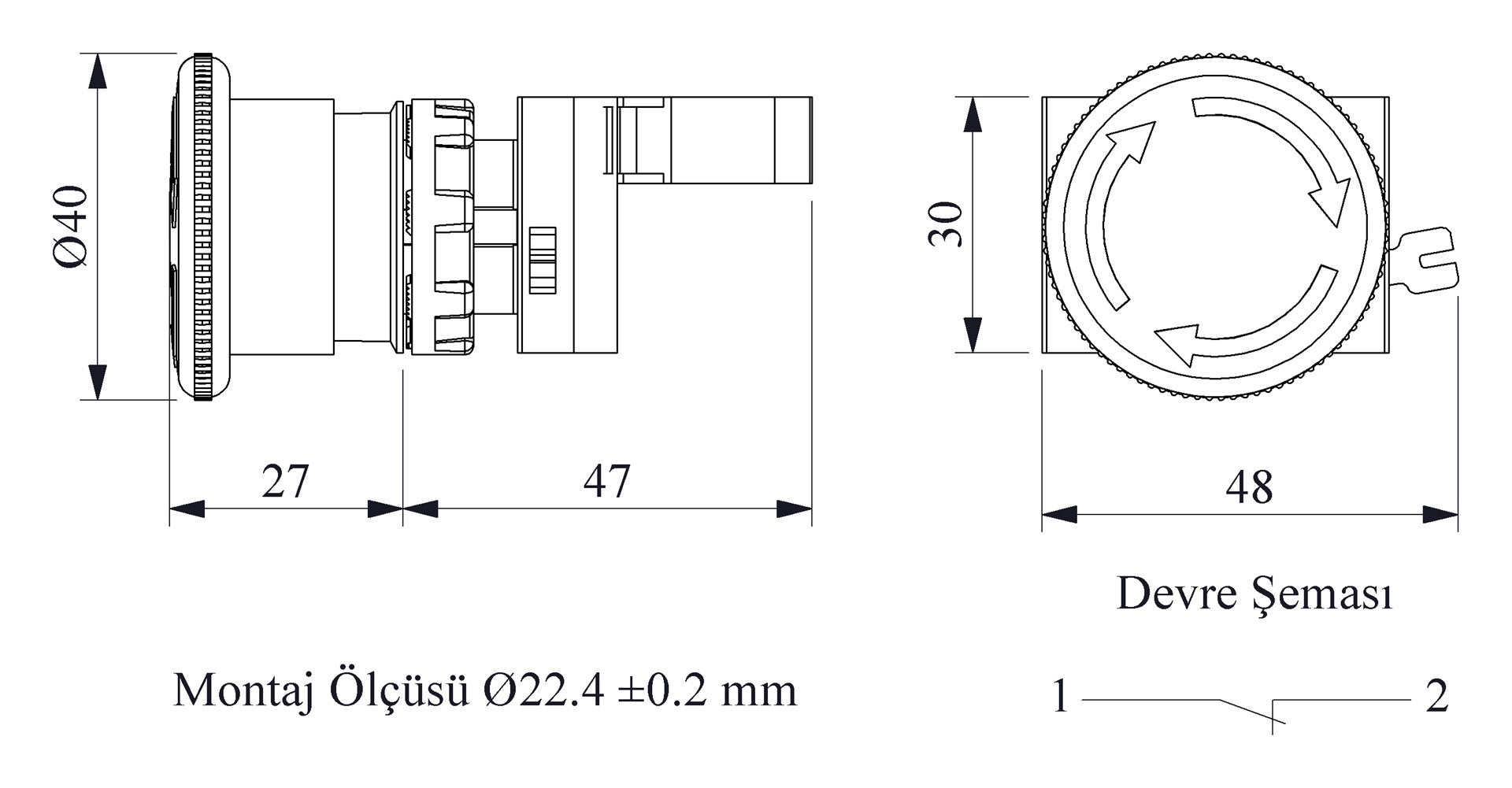

Dia
22 mm
Head Dia
40 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1200 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
CP Series Plastic
