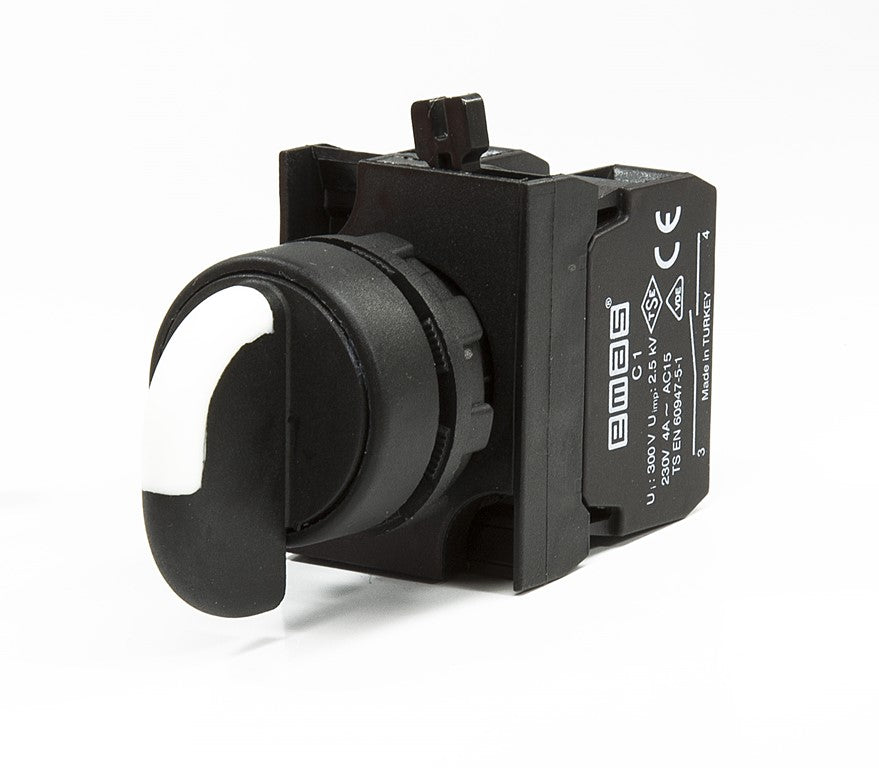

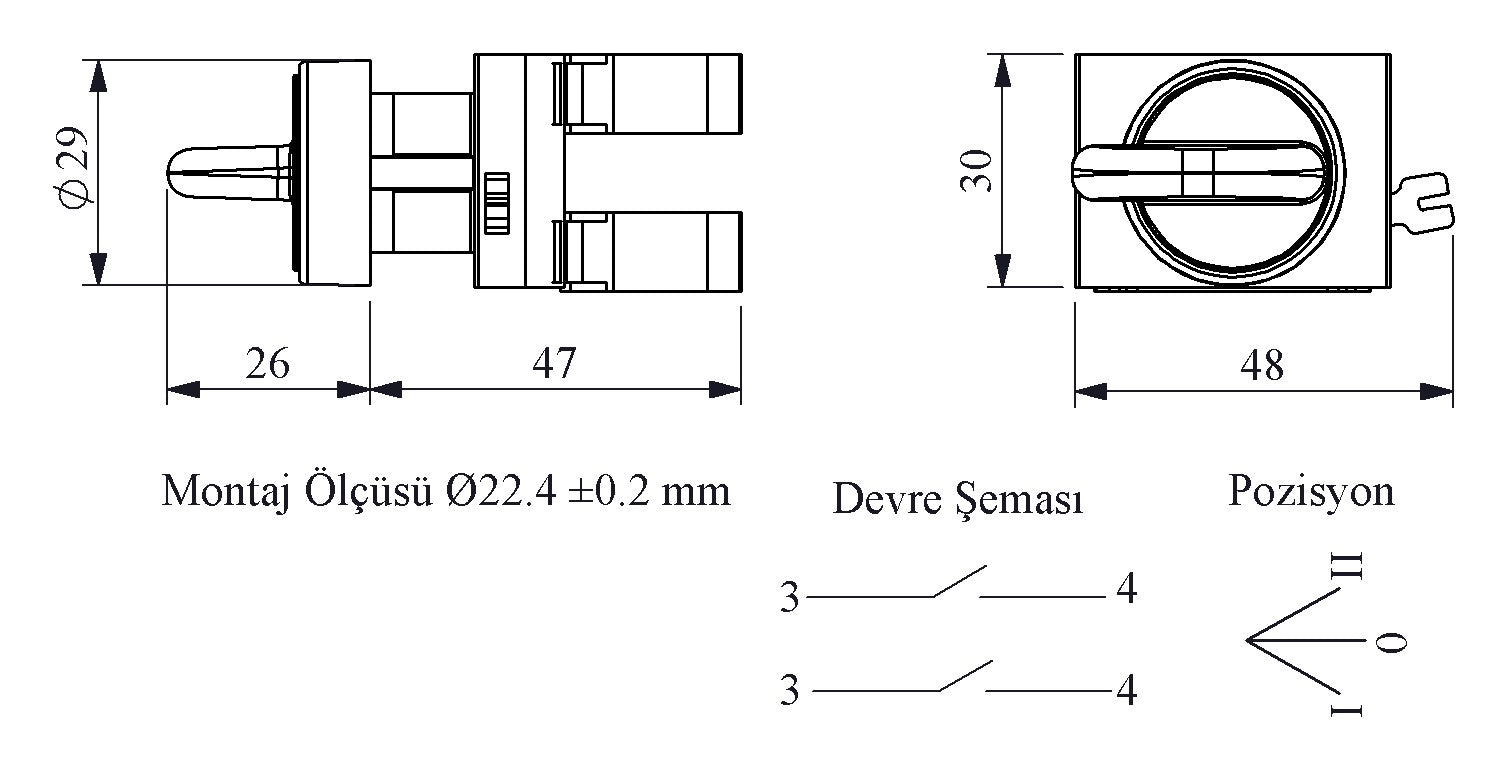

CP Series Plastic 1NO (II-0-I) 60° Selector Stay Put 22 mm Control Unit
Three Position with Centre Off - commonly used as ‘Manual - Off - Auto’
This component has a variety of other uses in control panels, machinery and OEM equipment. The outer contacts close when each position is selected, in the centre off position there is no actuation of contacts
- Additional C1 and C2 contacts can be added
- It is possible to illuminate from the rear of the selector using a CB light module
- Marking legend holders are available.. BROZET08, BROZET18
Product
Control Unit
Model
Selector
Type
Stay Put
Label/Position
(II-0-I) 60°
Contact
2NO
Dia
22 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
CP Series Plastic
