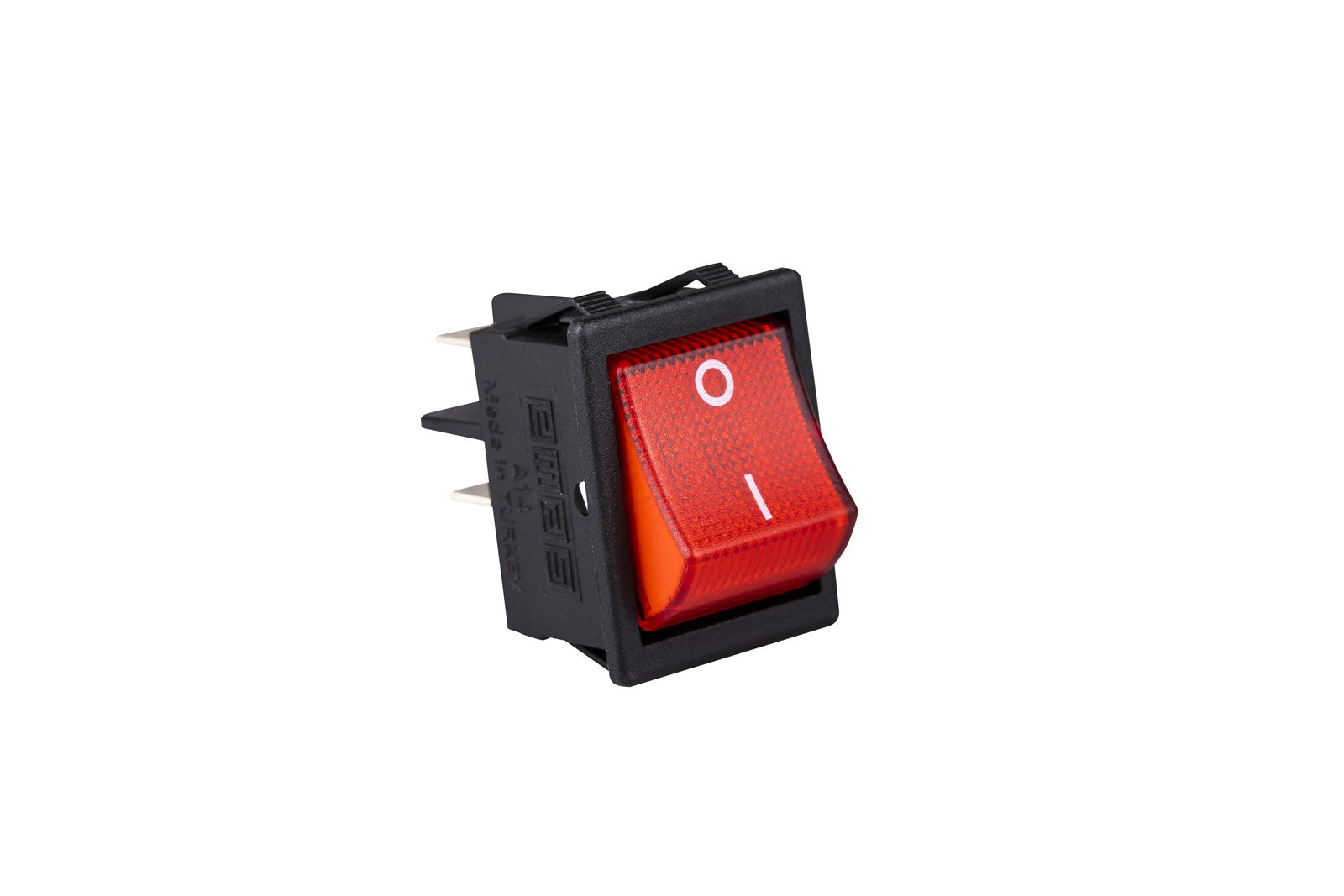

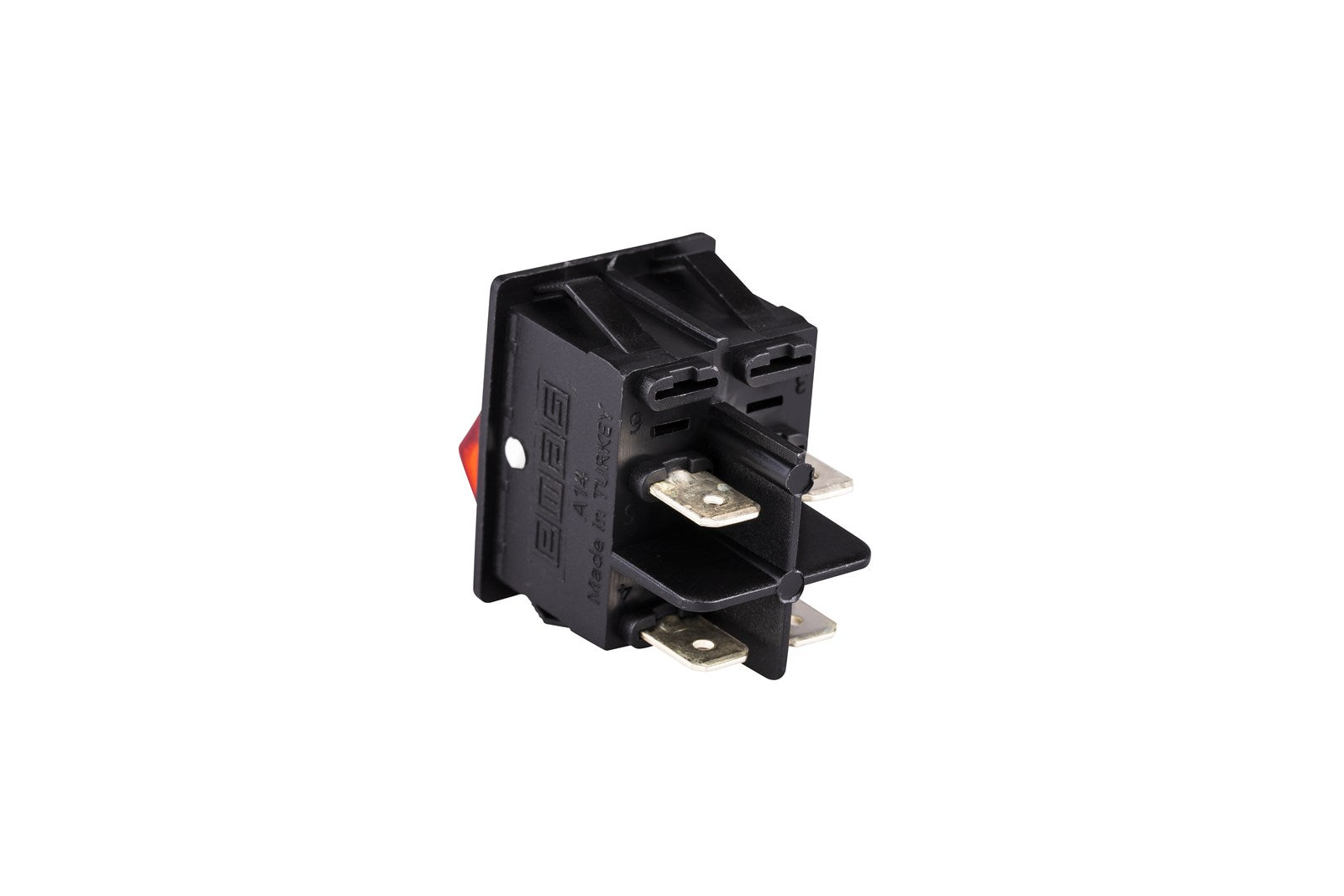

30*22mm Black Body 2NO with Illumination with Terminal (0-I) Marked Red A14 Series Rocker Switch
A great value double pole switch suitable for appliance repairs and OEM applications.
Replaces many domestic and commercial equipment On/Off switches.
- Portable appliances
- Lab equipment
- Workshop machinery
- Display fridges
- Catering equipment
UKCA and CE approval for peace of mind.
Connection Type
with Terminal
Print
(0-I) Marked
Product
Rocker Switch
Contact
2NO
Color
Red
Illumination
with Illumination
Dia
30*22mm
Current (Ie)
16 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.900 Elec.900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
A14 Series
Body Color
Black Body
Lincat, Electrolux, Omron, Bulgin, Numatic, Hoover, Vacuum, Pizza Oven, Grill, Griddle, Bain Marie
