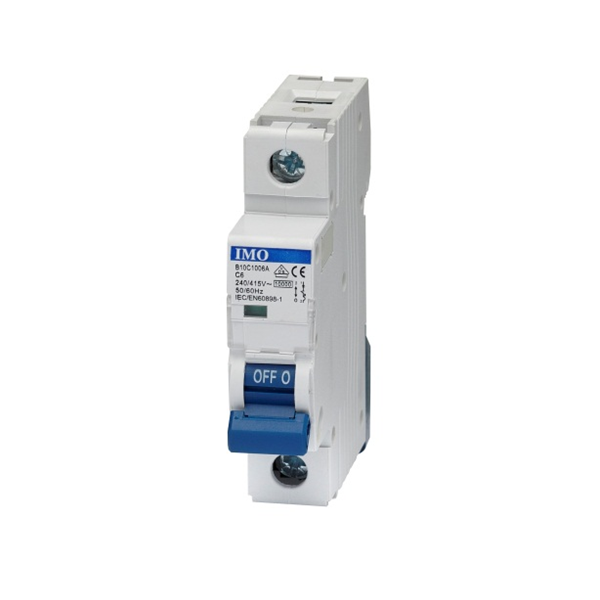

IMO Precision Controls offer a cost-effective miniature circuit breaker with a 10kA rated short circuit current. This is an excellent choice for circuit protection in an industrial control panel where three phase voltages may be present.
CE certified to EN 60898-1:2019. (BS EN 60898-1:2019)
We stock a range of current ratings to suit a large number of applications.
Number of Modules 1
Short Circuit Capacity 10.00
Temperature Range °C -5 to 40 °C
Rated Voltage (V) 230/415VAC
Number of Poles 1P
Tripping Curve C
Cable sizes (AWG) 2AWG
Rated Current (A) 16A
Cable size (mm²) 35mm
