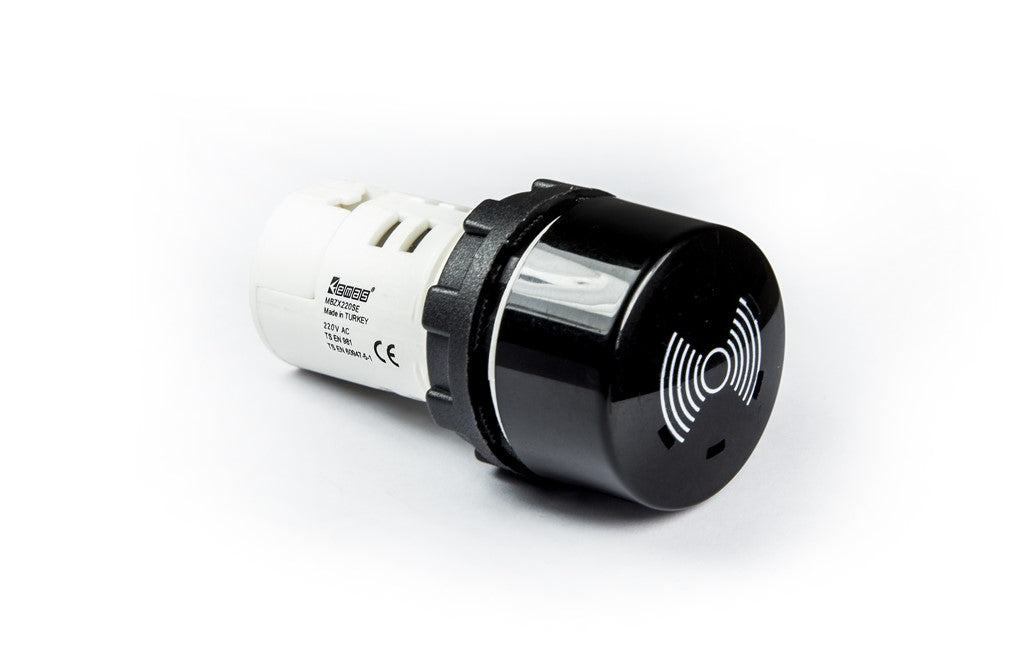

MB Series Plastic 230V AC 22 mm Buzzer
EMAS indicators are simple to install and connect. They can be expected to withstand production environments, offering branded reliability at a competitive price.
This is a one piece device suitable for an audible alarm. Perfect for wiring to a relay alarm output on a process control device. As provided with our range of Novus controllers.
Operating Current
27 mA
Operational Frequency
50 Hz
Operational Voltage
230V AC
Product
Buzzer
Dia
22 mm
Volume
90 dB
Power Consumption
<7 VA
Insulation Voltage (Ui)
250 V
Operating Temperature
-15 / + 70 °C
Protection Degree
IP50
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Serial
MB Series Plastic
Electrical Life (Min Hour)
10000
