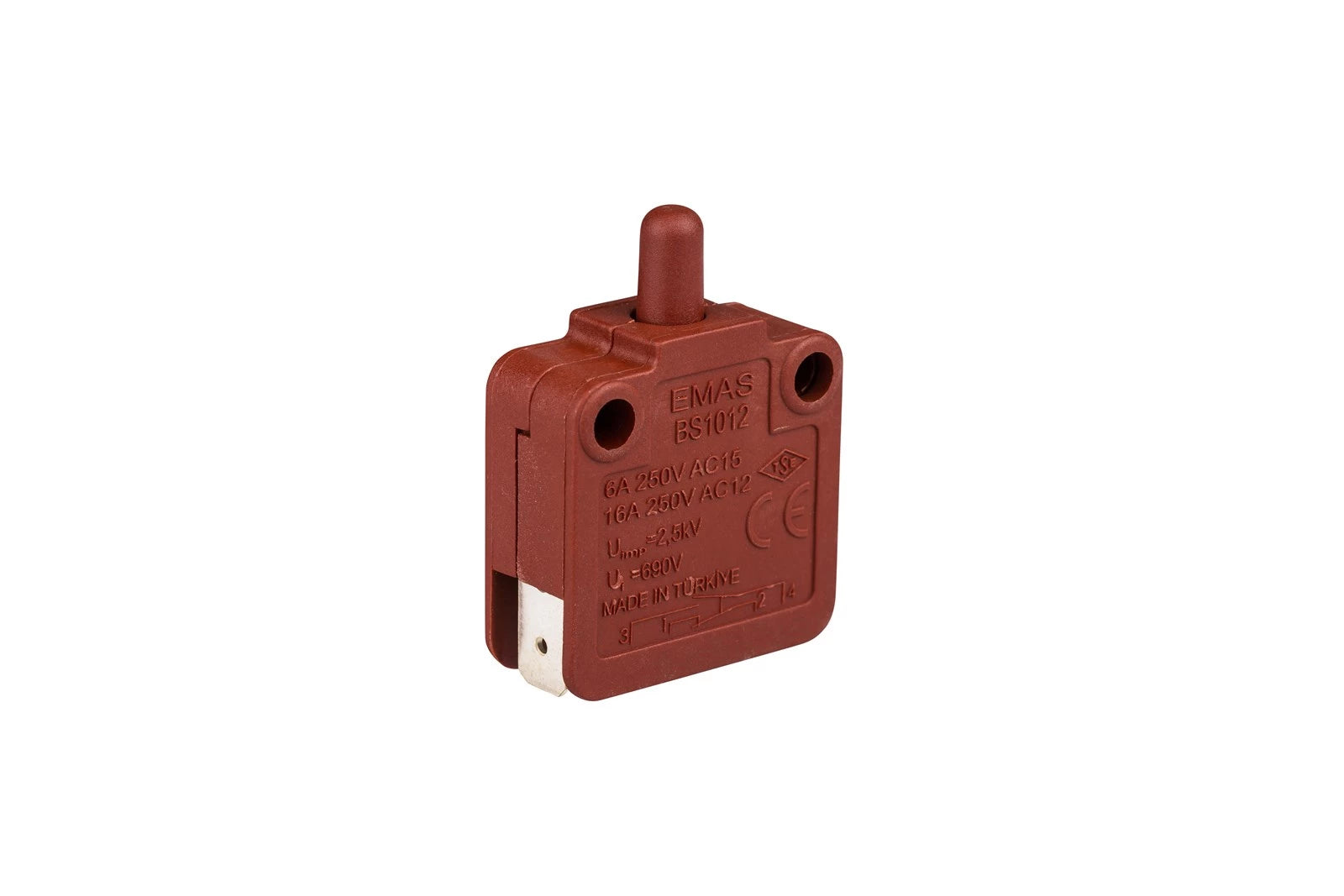

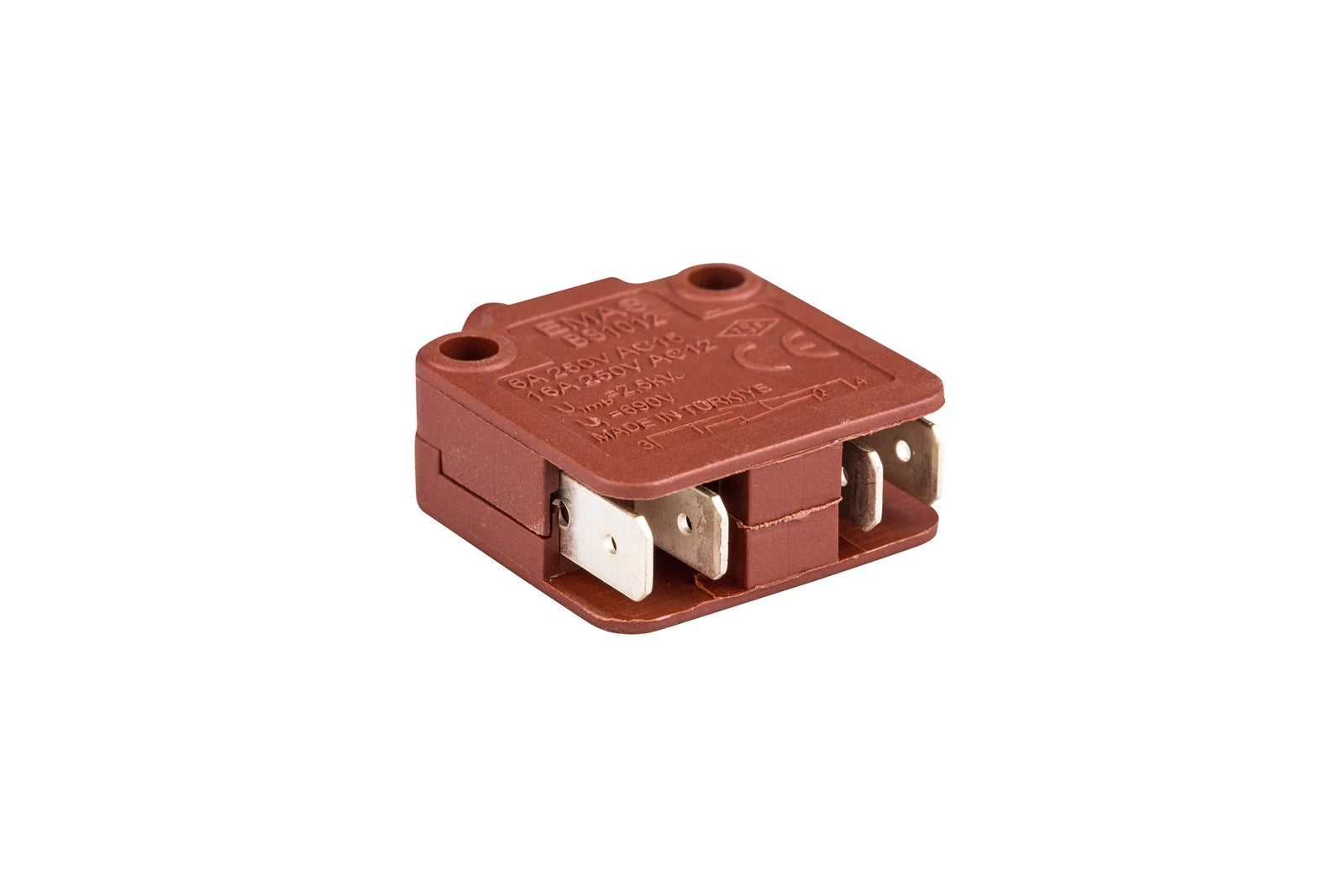

Snap Action 1NO+1NC BS Series Button Switch
A quality switch suitable for many applications:
- Catering equipment - safety switch
- Household appliances - door switch
- Machinery OEM - end stop, positional limit
Selecting the Normally Closed + Normally Open model gives greater flexibility for installation. Changeover contact permits changes in wiring configuration to suit different applications.
Product
Button Switch
Contact
1NO+1NC
Current (Ie)
6 A (250V AC) / 16A Resistive Load
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 900
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP40
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
BS Series
Action
Snap Action
