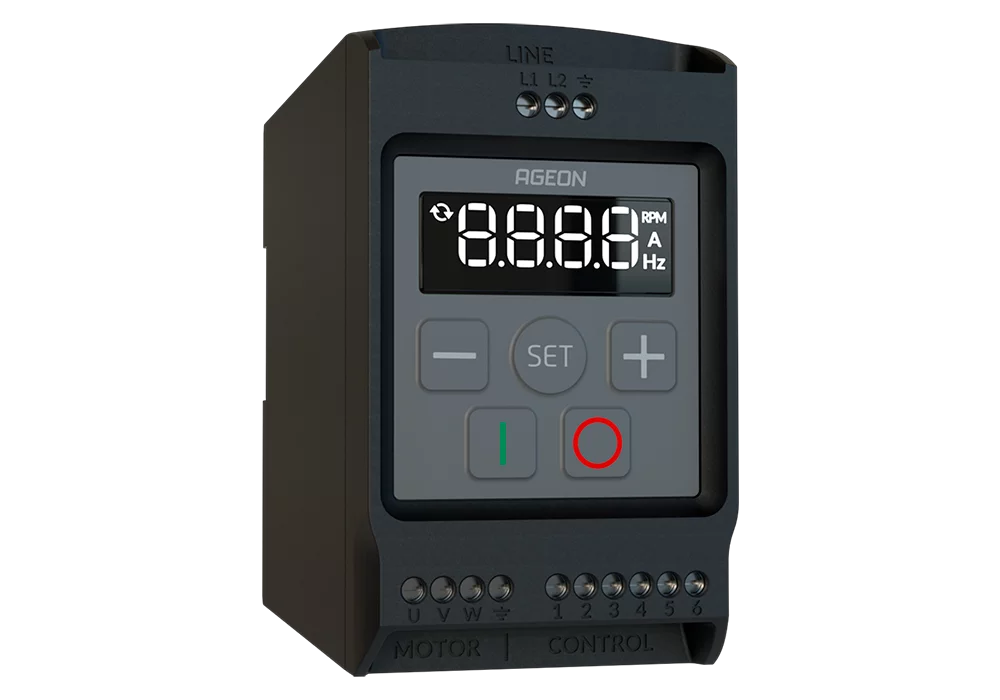

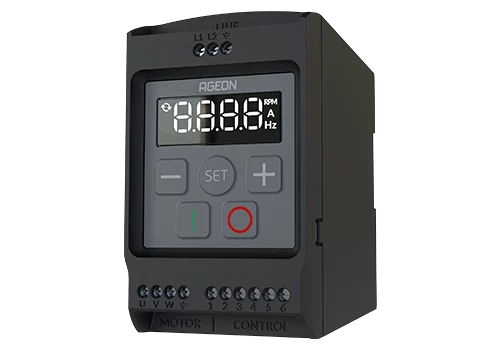

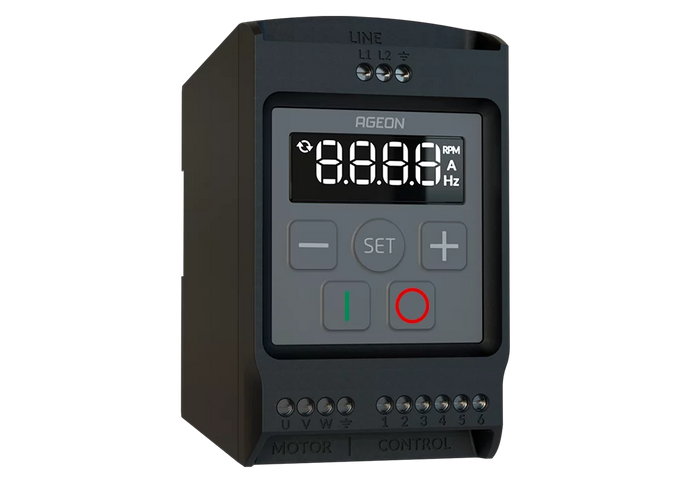

Looking for a low cost, compact and simple to install Variable Speed Drive?
Our Ageon AG Drive Inverters are suitable for many applications requiring variable speed control of a three phase motor.
Suitable for:
- Conveyors and general packaging machinery
- Stirring, mixing and agitators
- Workshop machinery, wood and metal working

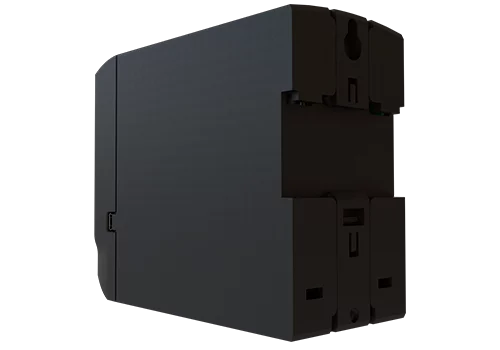

Mounting is simple, the drive clips to standard DIN rail or can be fitted using screw fixing points.
The AG Drive Mini can be configured quickly, it accepts Digital and Potentiometer wiring to turn the motor on/off, control the speed and direction of rotation. It includes an internal cooling fan to regulate the drive temperature.
A separate HMI Accessory is available to provide a convenient reference for parameters and basic commands which can be mounted on the outside of the control or electrical cabinet.

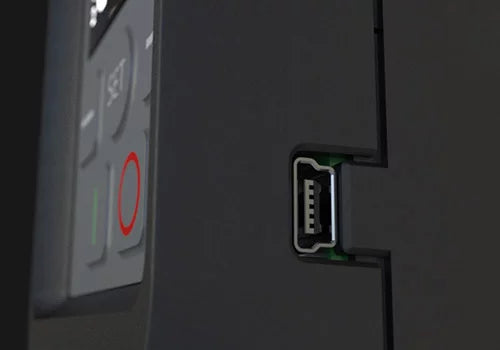

It is also possible to incorporate Modbus control using RS485.
Read our Support Page for more information on setup.
Ageon AG Drive Mini Manual Download
Why Choose Ageon?
- Made In Brazil
- ISO9001 Manufacturer
- 2 Year Warranty
- UK and Factory Level Technical Support
- Easy To Program (short, basic manuals!)
- No Expensive Accessories Required
Specifications
Model Parameters XF2-05
Maximum Power 0.37KW / 0.5HP
Rated Output Current 2.6 A
Maximum Output Current 3.4A
Maximum Input Current 5.1 A
Single-Phase / Two-Phase Power Supply Input voltage 200 to 240 VAC RMS
Input Frequency 50 to 60 Hz
Output Frequency 0 to 500 Hz
Switching Frequency 5k, 10k and 15 kHz
Control Type V/f
Degree of Protection IP20
Operating Temperature 0 to 50°C
Relative Humidity 5 to 90%
Analog Input 1 input (0 to 10 V)
Digital Input 3 digital inputs
Communication Modbus RTU *
Output Voltage At Maximum Frequency 220 VAC Three-Phase
* It is necessary to purchase a Serial-RS485 adapter
