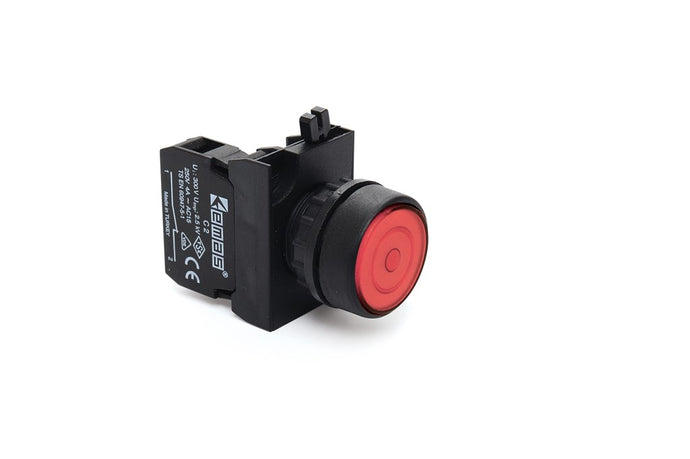

CP Series Plastic 1NO Spring Stay Put Red 22 mm Control Unit
Red pushbutton with stay put / maintained operation. Electrical contacts are made when the button is depressed, the contacts are held in the depressed position until released by a further push.
Supplied with 1 x Normally Open contact. Accepts standard C1 and C2 contacts for expansion.
Product
Control Unit
Model
Spring
Type
Stay Put
Contact
1NO
Color
Red
Dia
22 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
CP Series Plastic
