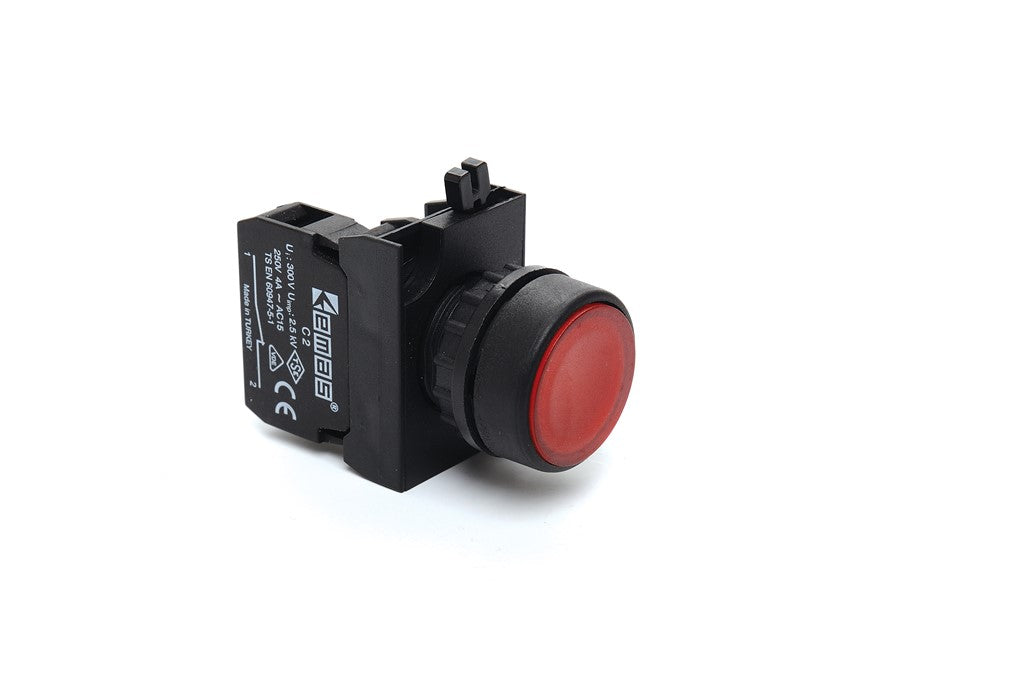

CP Series Plastic 1NO Spring Flush Red 22 mm Control Unit
Basic Red pushbutton with momentary operation. Electrical contacts are made when the button is depressed and held. Contacts spring back to the open position when the button is released.
- Additional C1 and C2 contacts can be added
- It is possible to illuminate from the rear of the selector using a CB light module
- Marking legend holders are available.. BROZET08, BROZET18
Product
Control Unit
Model
Spring
Type
Flush
Contact
1NO
Color
Red

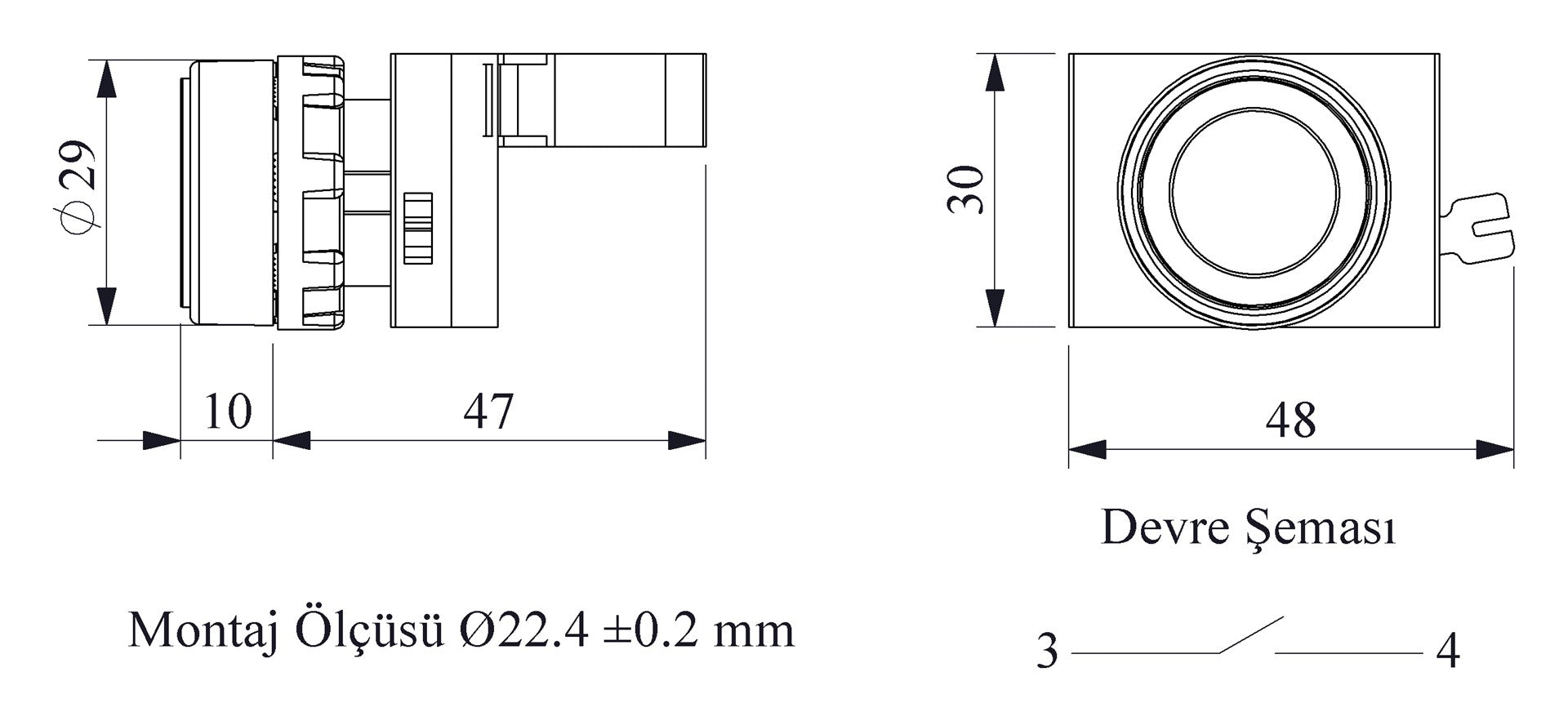

Dia
22 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
CP Series Plastic
