Great for:
- Hardwired I/O to MQTT or Modbus
- Passing data to OEE, DCS or SCADA
- Cloud compatible device
- Gateway function (Modbus RTU to MQTT)
- Gateway function (Modbus RTU to Ethernet)

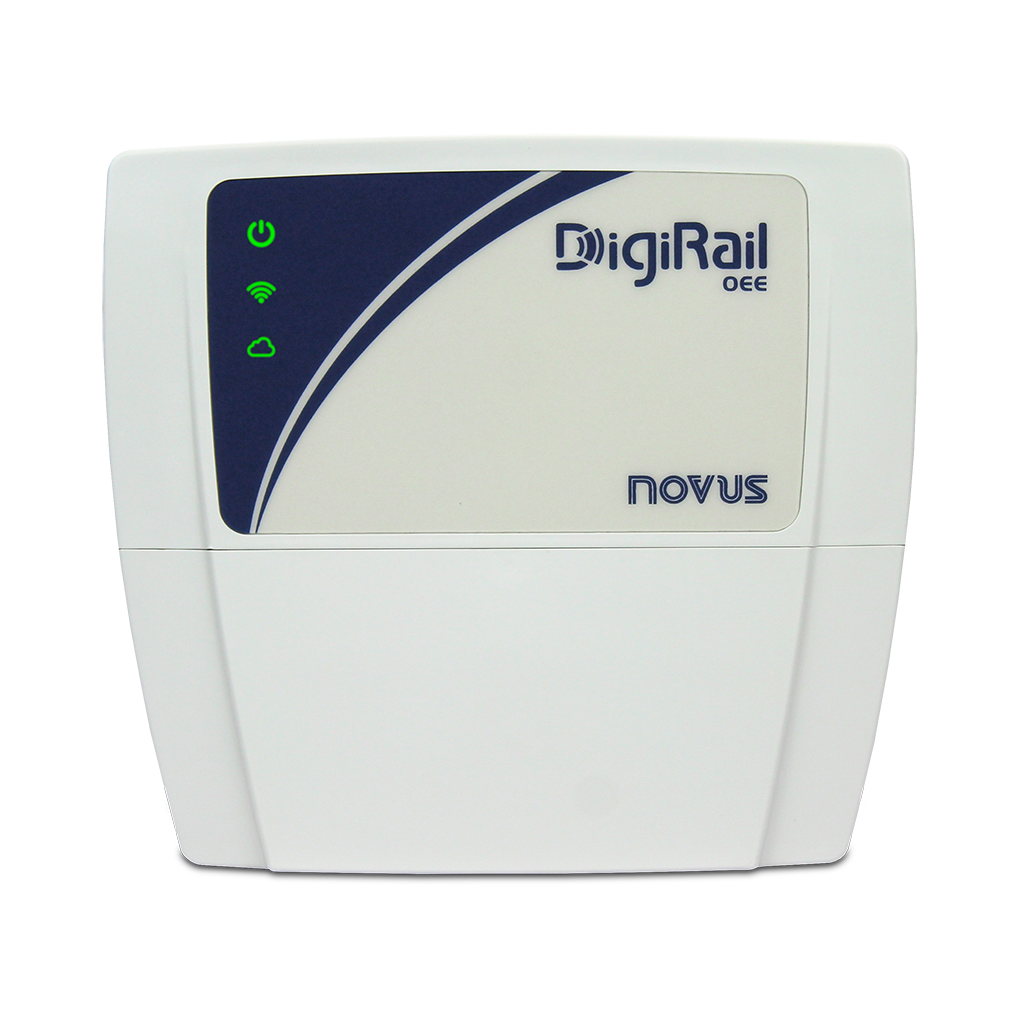

Economical machine monitoring for Overall Equiment Effectiveness (OEE). DigiRail OEE utilises existing network infrastructure to provide data acquisition and logging. This can be achieved using WiFi or LAN networks.
The module contains 6 digital inputs which can be individually configured to monitor state (On/Off) or to act as counters. There are also two analogue inputs and two digital outputs.

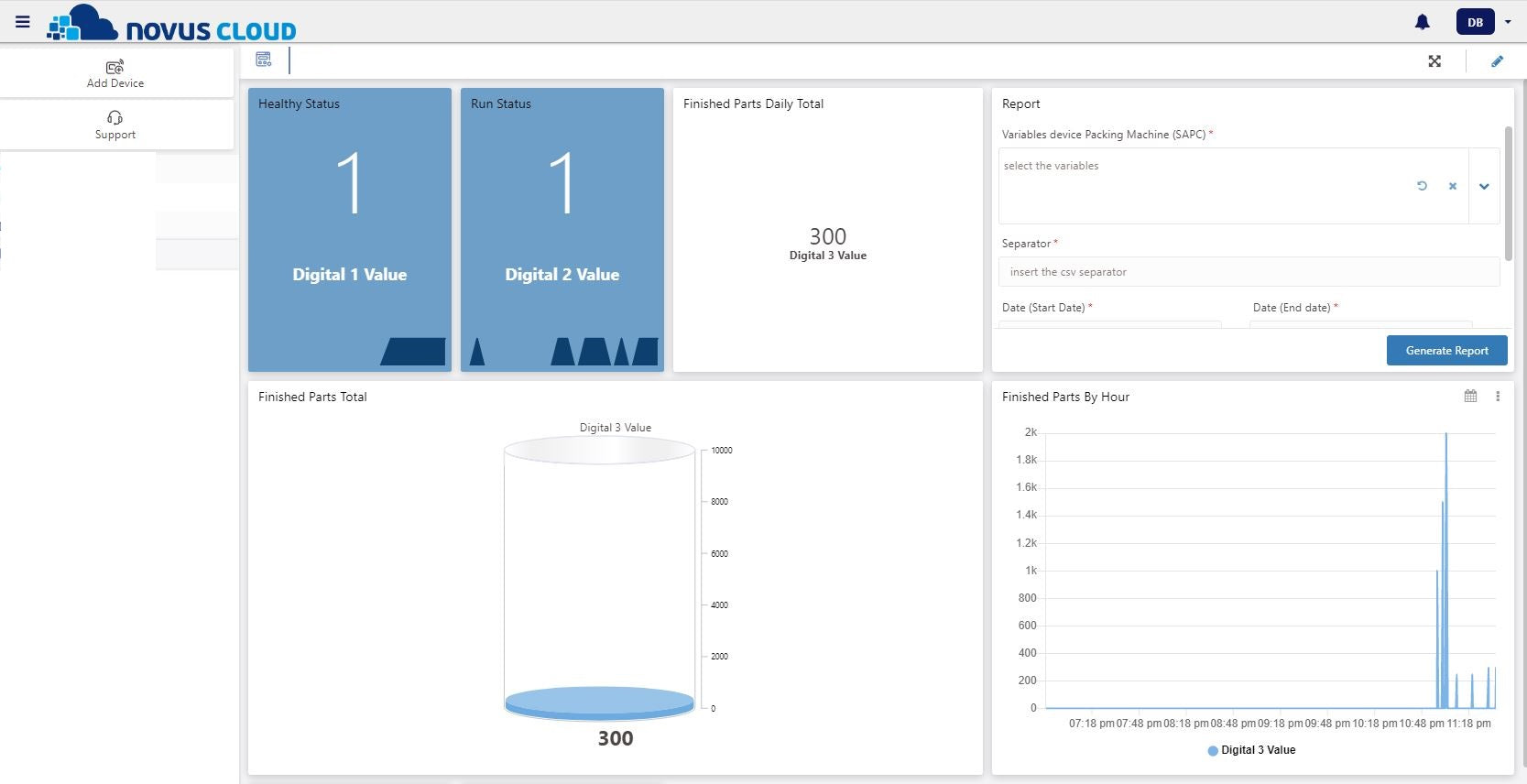

Initial configuration in Novus NXperience is an extremely quick process. With a small amount of interface wiring the module can begin gathering data in minutes. This can be passed via MQTT to Novus Cloud or similar services. It is also possible to send data to existing PLC/SCADA systems using the Modbus TCP protocol.
8811814420 - LAN/Ethernet Model
- Inputs:
6 digital
2 analog
- Outputs:
2 digital
- Analog signals:
0-5 V, 0-10 V, 0-20 mA and 4-20 mA
- Digital signals:
NPN, PNP and dry contact
- Analog input impedance:
mA: 15 Ω + 1.5 V
V: 1 MΩ
- Digital input features:
Logical level "0": <0.5 V
Logical level "1": > 3 V
Maximum voltage: 30 V
Input impedance: 270 kΩ
Input current: @ 30 Vdc (typical) 0.15 mA
Maximum frequency (square wave):
Dry contact: 10 Hz
PNP: 3 kHz
NPN: 3 kHz
Minimum pulse duration:
Dry contact: 50 ms
PNP: 150 us
NPN: 150 us
- Digital output characteristics:
2 NPN digital outputs
Maximum current that can switch the output: 700 mA
- Analog channel resolution:
Analog inputs: 15 bits (32000 levels)
- Communication interface:
USB
Ethernet: 10/100 Mb / s, IEEE standard 802.3u
Wi-Fi 802.11 b / g / n 2.4 GHz
RS485
- Software:
NXperience
- Power supply:
Voltage: 10 Vdc to 36 Vdc
Wi-Fi model:
Typical consumption: 70 mA @ 24V
Maximum consumption: 160 mA @ 12V
Ethernet model:
Typical consumption: 50 mA @ 24V
Maximum consumption: 120 mA @ 12V
- Operation conditions:
Temperature:
-20 to 60 ° C (-4 to 140 ° F)
Humidity:
5 to 95% RH, non-condensing
- Battery:
CR2032 for internal clock retention
- Assembly:
DIN rail or screw mounting.
- Degree of Protection
IP20
- Enclosure:
ABS + PC
