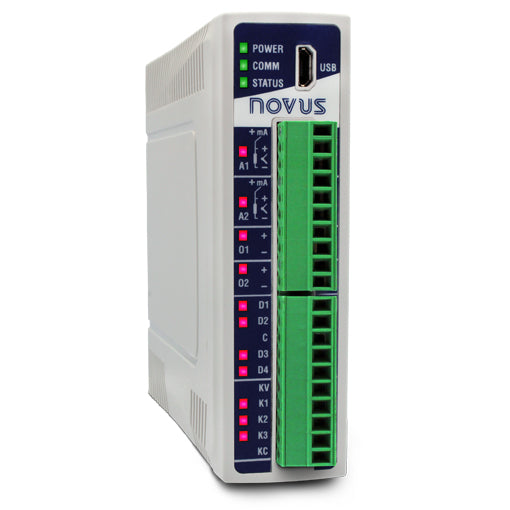

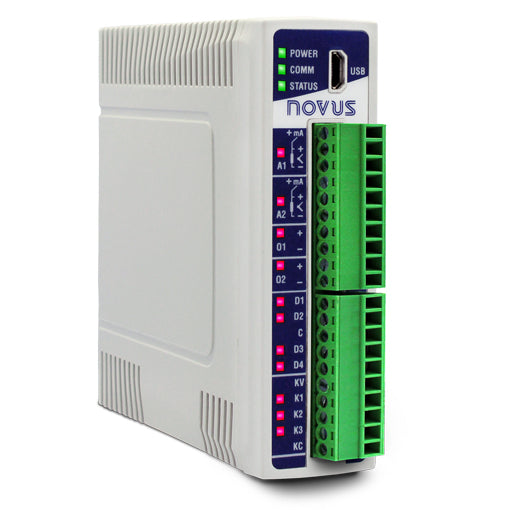

DigiRail NXprog gathers the best of both, easy programming of Arduino community and industrial device reliability and robustness for automation applications. Its integrated I/O handles analog and digital signals, allowing DigiRail NXprog be used as an I/O extension of standard automation systems or as a brain of custom applications.
Arduino compatible, DigiRail NXprog enables the use of high level programming languages such as C / C ++ that enable the user to implement complex algorithms such as recursive logic, state machines, statistical analysis and mathematical equations. This is an excellent advantage over the mid-level programming hardship (IEC standard) found on most PLCs in the global market, considered archaic by the new generation of automation technicians.
Designed especially for harsh environments, DigiRail NXprog demystifies the use of Arduino compatible devices for the industry, being the perfect combination of ruggedness with easy programming. The RS485 interface allows communication with other Modbus RTU protocol devices, either as a master or slave. Flexible for receiving protocols from Arduino community libraries or implementing custom protocols, DigiRail NXprog enables a variety of applications with machines or processes connectivity.
Digital Output Model = 2AI, 2AO, 4DI, 3DO
- Inputs:
RAMIX: 4 digital and 2 analog (isolated)
- Outputs:
RAMIX: 3 digital or 2 relay and 2 analog (isolated)
- Analog signals:
Thermocouples J, K, T, N, E, R, S and B
Pt100, Pt1000, NTC,
0-60 mV, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Analog input impedance:
0-60 mV, Pt100, Pt1000, NTC and thermocouples: >10 M§Ù
0-5 V, 0-10 V: >1 M§Ù
4-20 mA: 15 §Ù + (1 V @ 20 mA)
- Digital Input characteristics:
Logical level "0": < 0.5 V
Logical level "1": > 3 V
Maximum voltage: 30 V
Input impedance:270 k§Ù
Input current: @ 30 Vdc (typical) 0.15 mA
Maximum frequency (square wave):
Dry contact: 10 Hz
PNP: 250 Hz
NPN: 250 kHz
- Digital Output characteristics:
Maximum load current: 500 mA
Short circuit current: 200 mA
Maximum switching voltage: 30 Vdc
Minimum switching voltage: 6 Vdc
- Relay Output characteristics:
Type: SPST-NO and SPDT
Maximum load current: 3 A (SPST) / 6 A (SPDT)
Switching voltage: 250 Vac
Suitable for resistive loads
- Analog Output characteristics:
Signal types: 0-20 mA, 4-20 mA, 0-10 V
Maximum load: 0-20 / 4-20 mA: ≤ 500 §Ù
0-10 V: ≥ 2000 §Ù
- Analog Channel resolution:
Analog inputs: 16 bits (65000 levels)
Analog outputs: 12 bits
- Communication interface:
USB
CAN

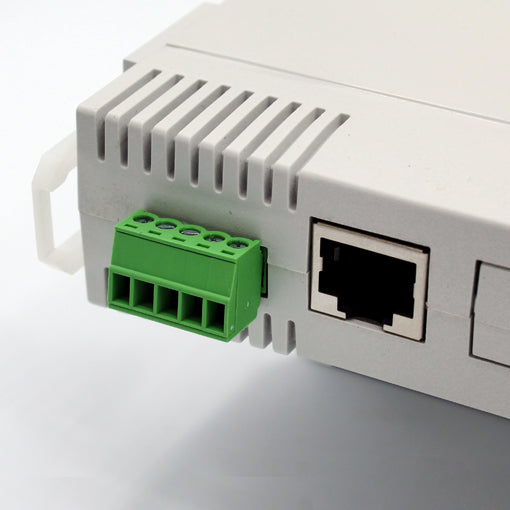

Ethernet: 10/100 Mb/s, IEEE standard 802.3u
RS485
- Software:
NXperience (via USB)
- Power Supply:
Voltage: 10 Vdc to 36 Vdc
Maximum Consumption: 5 W
Typical Consumption: 20 mA
- Operating conditions:
Temperature: -20 to 60°C ( -4 to 140°F)
Humidity: 5 to 95% RH, non-condensing
- Enclosure: ABS+PC
