Novus DigiRail Modbus IO Modules (Digital Input, Analogue Input, Relay Output)

Vendor
Novus
Regular price
£82.00 (Exc. VAT)
Sale price
£82.00 (Exc. VAT)
Regular price
(Exc. VAT)
Sold out
Unit price
per
Shipping calculated at checkout.

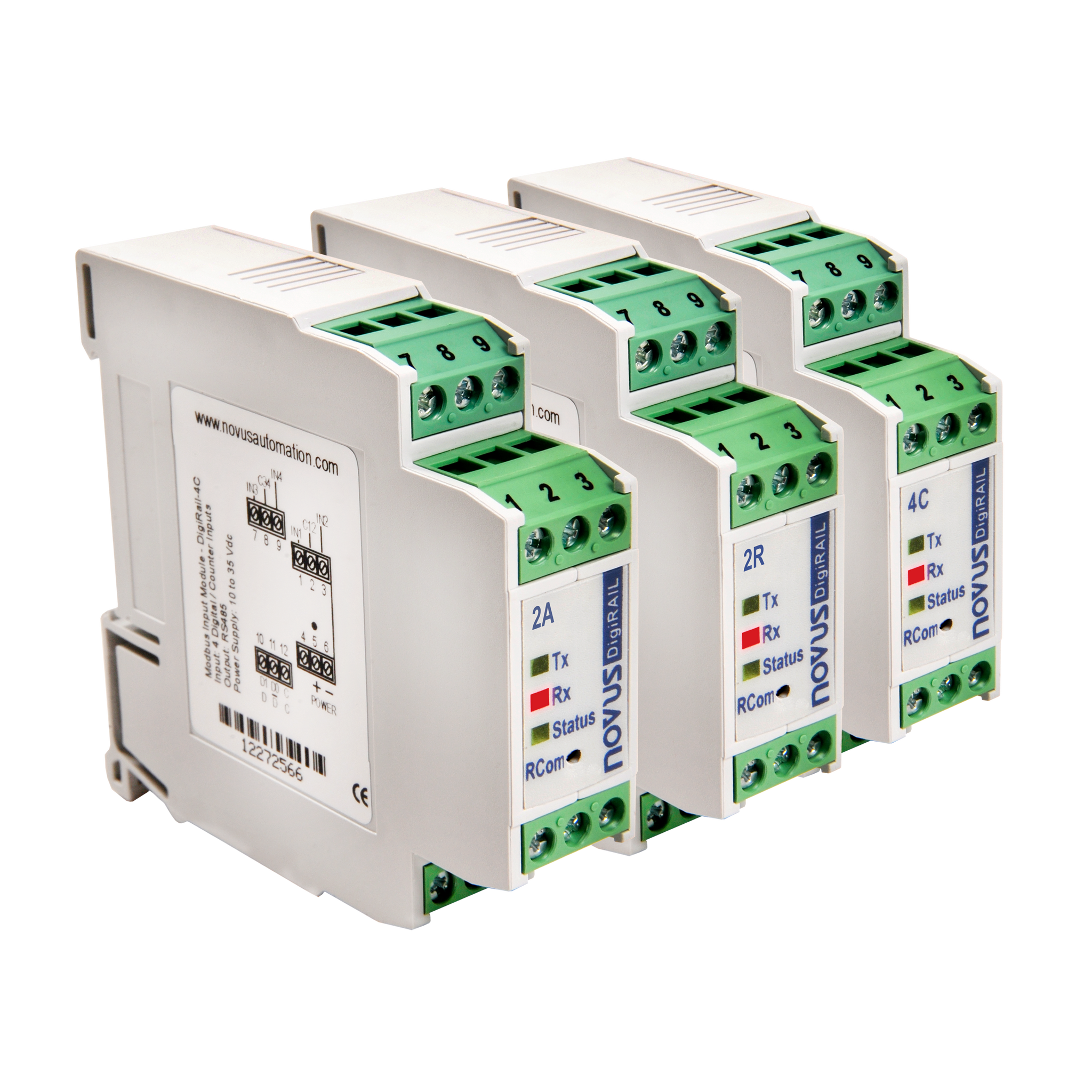

Novus Automation offer 3 models of simple RS485 IO module:

  • DigiRail 2A, 2 x universal analogue input MPN 8811100001

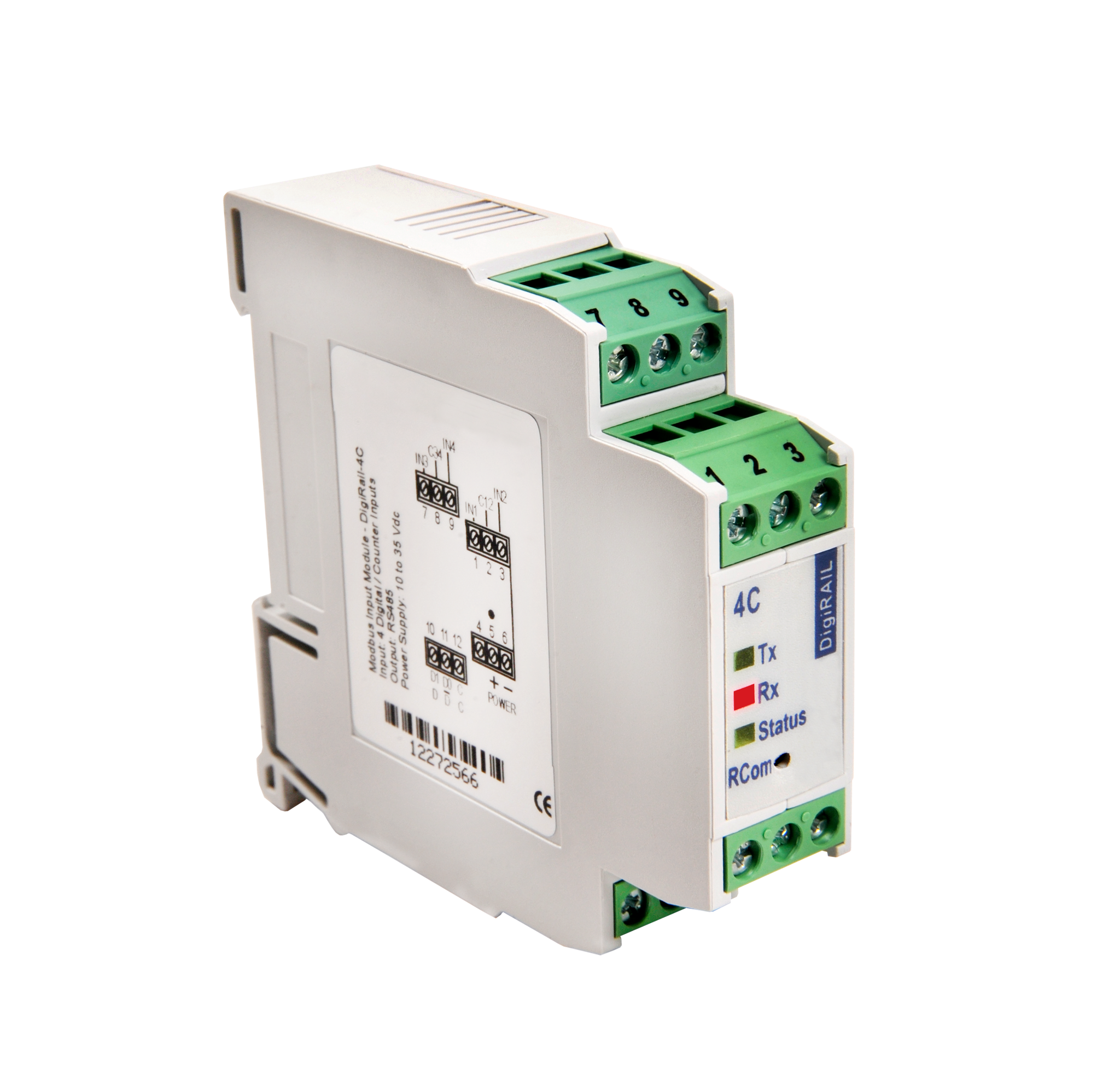

  • DigiRail 4C, 4 x digital inputs/counters MPN 8811400101
  • DigiRail 2R, 2 x 8A SPDT relay outputs MPN 8811200101

Devices are DIN rail mounting and require very basic parameter setup using free DigiConfig software. Allowing easy expansion of existing IO and integration as a Modbus RTU Slave, reading and writing the registers accordingly.

The DigiRail line of smart transmitters with Modbus RTU communication interface provide a simple way for integrating analogue or digital signals to supervisory systems. Featuring up to two universal input analogue signal channels they are the most economical way to deliver analogue inputs to PLC´s and SCADA systems. The input signals are isolated from power thus protecting the electrical instruments by eliminating ground loop effects. This reduces substantially the undesirable interferences and instabilities in sensor measurements.

- Analog inputs: programmable for thermocouples (J, K, T, E, N, R, S, B), Pt100, mV, V, mA
- Cold junction compensation for thermocouples and compensation for Pt100 3-wire cables
- Open loop detection for thermocouples, Pt100 and mV
- Sampling rate for 1 analog input: 10Hz for mV, V and mA. 5 Hz for t thermocouples and Pt100<
- Analog input resolution: 17 bits
- Digital inputs: in voltage, 4 to 35 V to activate. Internally limited current in 5 mA
- Digital outputs: 8 A / 250 Vac SPDT relay, resistive load
- Power: 10 to 35 Vdc, 50 mA maximum current 2-wire RS485 communication with Modbus RTU protocol

- Configurable address and baud rate (1,200 to 115,200bps)
- LED indicators for communication and status
- Key for resetting communication parameters to original factory default
- Accuracy (at 25 °C): Pt100, mV, V and mA: ±0.15 % of full scale. Thermocouples: ±0.25 % of full scale
- Temperature effect: 0.003 % of full scale/°C
- Cold junction compensation for thermocouples: 1 °C at 25 °C. ±0.05 °C / °C
- Isolation: 1000 Vac from inputs (analog or digital) and power or communication
- Windows based configurator software (free download)
- Dimentions: 72 x 78 x 19 mm
- Mounting: 35 mm DIN rail
- Working temperature: 0 to 70 °C
