Great for:
- Measuring humidity and temperature
- 0-100% RH range
- 0-100C temperature range
Applications:
- Food storage and processing
- Agriculture, greenhouses
- Data centres

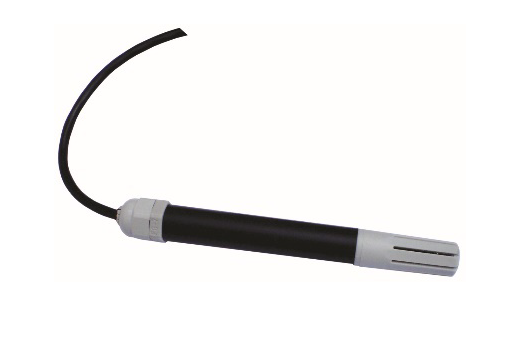

The RHT-Probe is a digital sensor for temperature and relative humidity compatible with N322-RHT and N323-RHT electronic thermostats. The temperature and humidity sensor is protected by a polyamide capsule and has 3 or 6 meters long PVC cables.
MPN 8830000356
Novus RHT-Probe Manual Download
INPUT SENSOR: Humidity measurement
Range: 0 and 100 % (RH) (see Figure 1);
Accuracy: ± 3 % (typical, see Figure 1);
Repeatability: ± 0.1 % RH;
Hysteresis: ± 1 % RH;
Linearity error: << 1 % RH;
Stability: < 1 % RH / year;
Response time: Around 8 s to reach 63 % of a fast input
change. Valid at 25 °C and 1 m/s airflow.
INPUT SENSOR: Temperature
Accuracy: ± 0.5 °C (typical, see Figure 1)
Repeatability: ± 0.1 °C
Range: -20 and 100 °C (-4 to 212 °F) (see Figure 1)
Response time: Up 30 seconds in slow moving air.
WARM-UP: ........................................................................... 15 minutes
MEASUREMENT RESOLUTION:
RH:.......................................................................................... 0.1 %
T: ............................................................................................ 0.1 °C
OPERATING ENVIRONMENT:
Temperature .................... -20 to 100 °C (-4 to 212 °F) (see Figure 1)
Relative Humidity ....................................................0 to 100 % RH
HOUSING:
Protection: Sensor capsule IP40
Cable material: PVC
Cable length: 3 or 6 meters (not compatible with cable
extensions).
