Great For:
- Combined temperature and humidity control
- Auxiliary relay timer for motor control (i.e. egg turning)
- Probe included - no need to purchase separately
- Built in TRIAC connects directly to element (No SSR required <400W)
Applications:
- HVAC
- Incubators
- Maturators
- Food Industry
Ageon A103 PID-U Manual Download

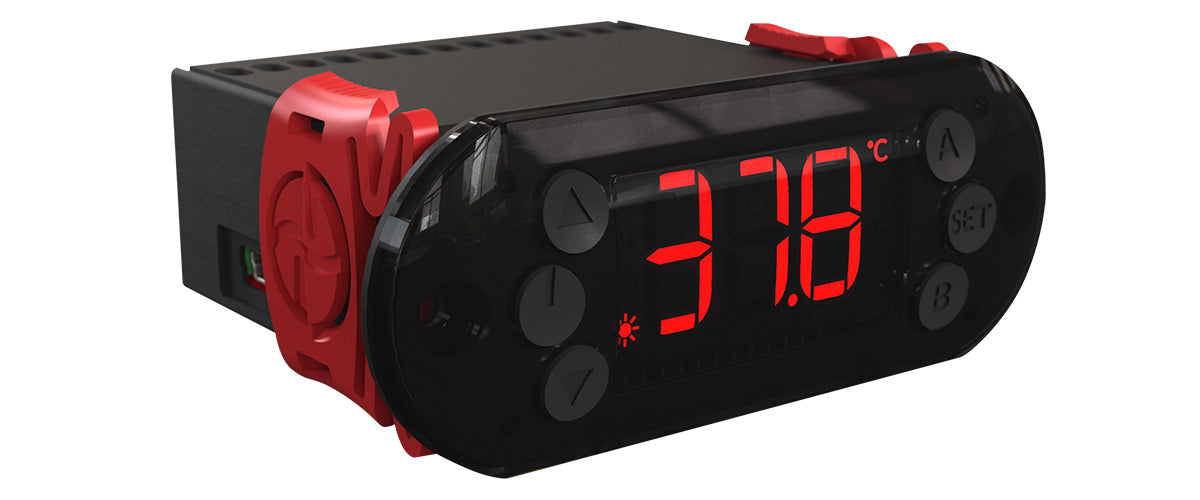

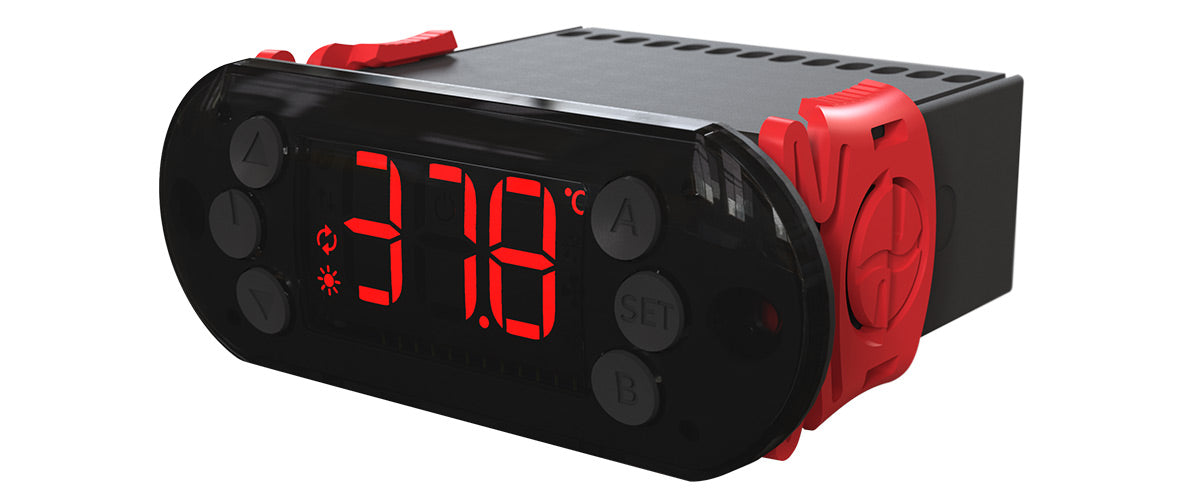

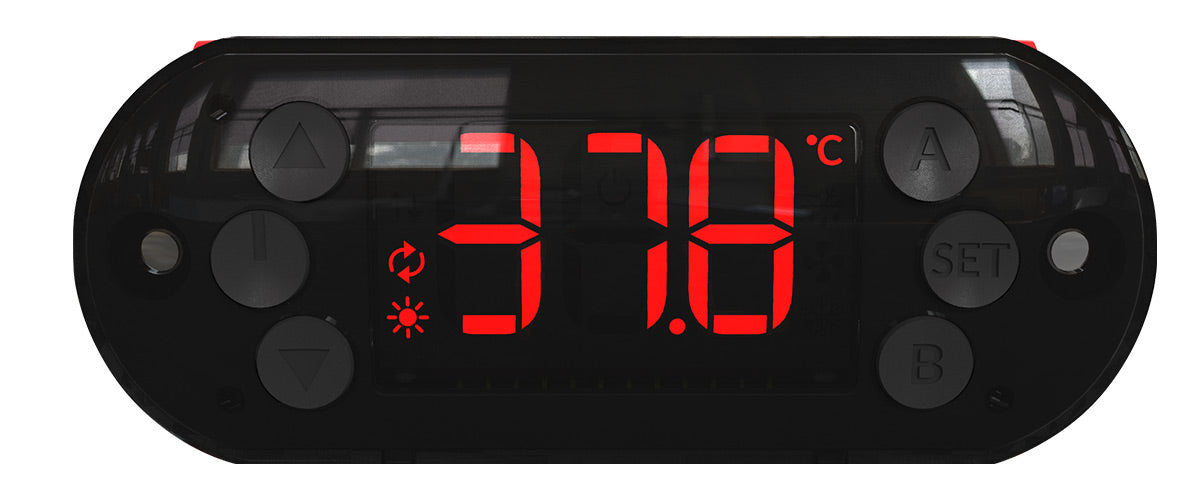

A103PID-U is a humidity and temperature controller with 3 outputs, one TRIAC output with PID control (proportional, derivative and integrative) for heating, one relay output for humidity and one auxiliary relay output for temperature or cyclic timer. power at the main output through a TRIAC with PID control. This control is more precise than a conventional “on and off” relay system, as it varies the voltage level in the electrical resistance according to the ambient temperature, in order to avoid overshoot. In addition, the A103 PID-U is compatible with Arcsys, which would be Ageon's monitoring system.
The cyclic timer can function to control a turning motor, for example:
