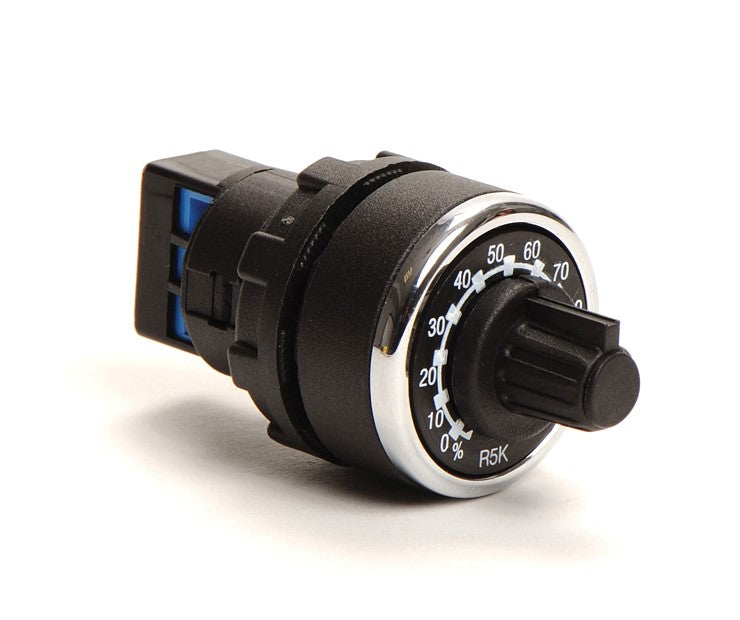

EMAS BPR potentiometers are simple to wire and suitable for a range of applications.
- Solder free for easy panel mounting
- High precision Vishay wiper
- Scale reads 0-100%
- Smooth and stable operation
- Secure stops at start/end of adjustment
Centre terminal functions as wiper, outer terminals can be wired to suit increasing or decreasing output relative to the dial percentage.
They are excellent for manual control of motor speed for variable speed drives. We have used them with leading brand inverters, refer to the KΩ values specified in the product manual for correct selection.
Product
Potentiometer

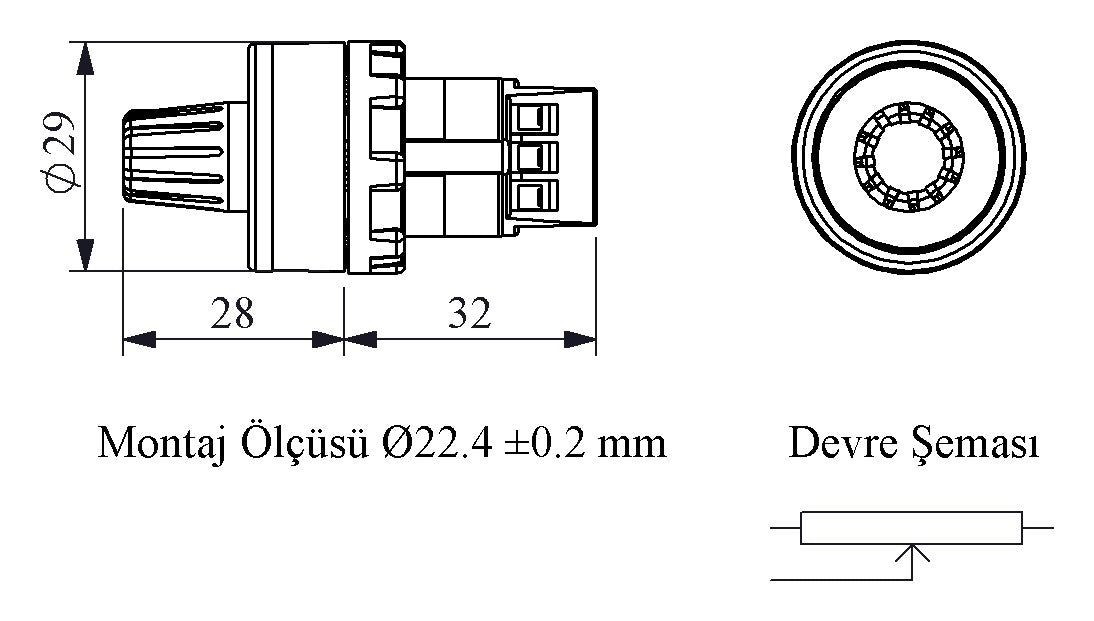

Dia
22 mm
Dielectric Strength (Contact-Contact)
1750 Vrms
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Cable Section
0.75-1.5 mm2
Screw Torque
1,5 Nm
Maximum Current
38,70 mA
Maximum Power
1,5 W (70ºC)
Resistive Value
10 kΩ
Spin Angle
270°
Serial
B Series Plastic
