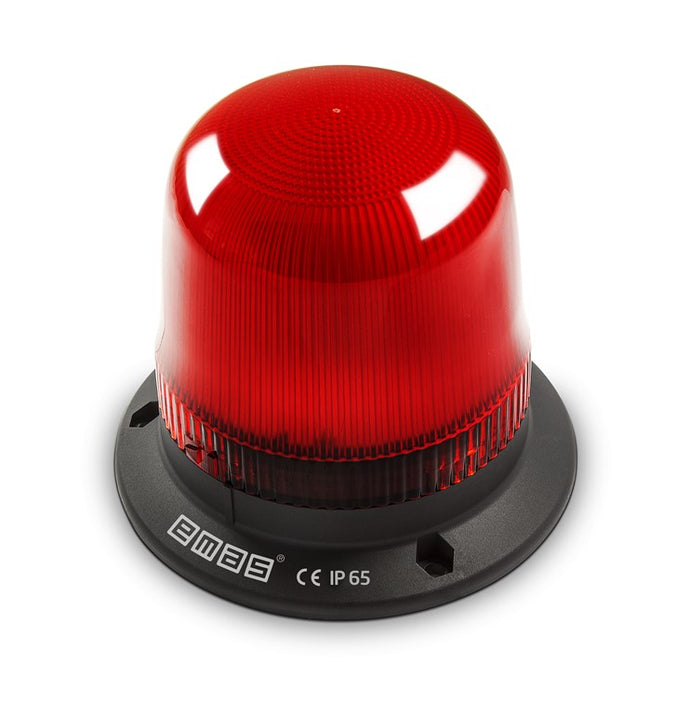

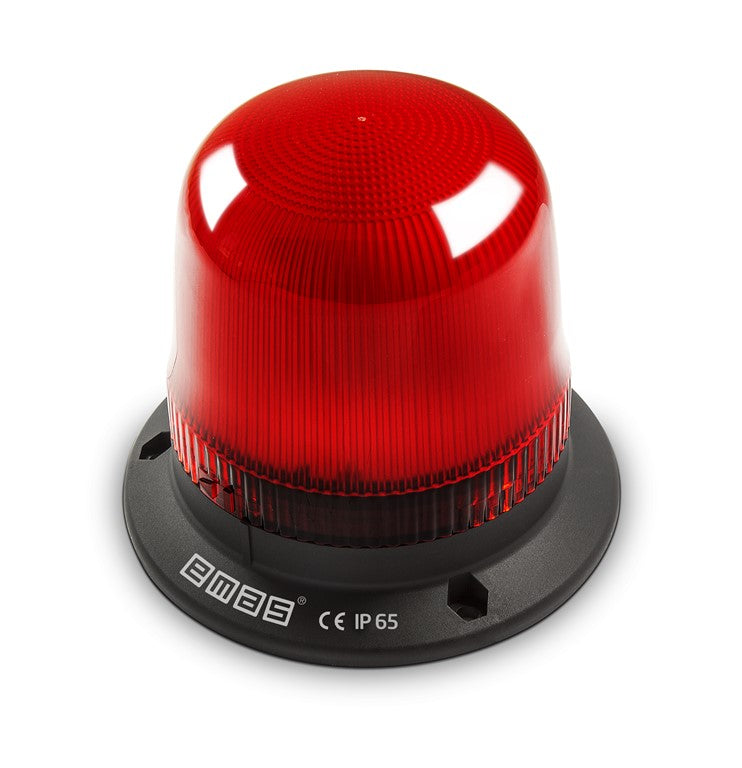

This multifunction LED beacon from EMAS is highly configurable to provide the correct balance of light and sound. Available in 12-24V AC/DC or 110/230V AC supply models.
Z models include built in buzzer.
Great for:
- Highlighting alarm conditions
- Noisy production environments
- Large machines
- Selectable tone and flashing sequence
- 70-95dB sounder (Z models)
- Base or wall mount
- High level of environmental protection
- No moving components, wear free
Bulb Type
LED
Operational Frequency
50 Hz
Operational Voltage
12-24V AC/DC or 110/230V AC
Product
LED Beacon 120mm
Control
Multifunctional
Color
Red
Power Consumption
10W (Max)
Insulation Voltage (Ui)
300V
Dielectric Strength (Body-Contact)
1500V
Operating Temperature
-25 °C /+55 °C
Protection Degree
IP65
Cable Section
Cable 0,50 mm2
Production Time
31.12.1899 00:00:00
Serial
IT Series
Electrical Life (Min Hour)
20000
