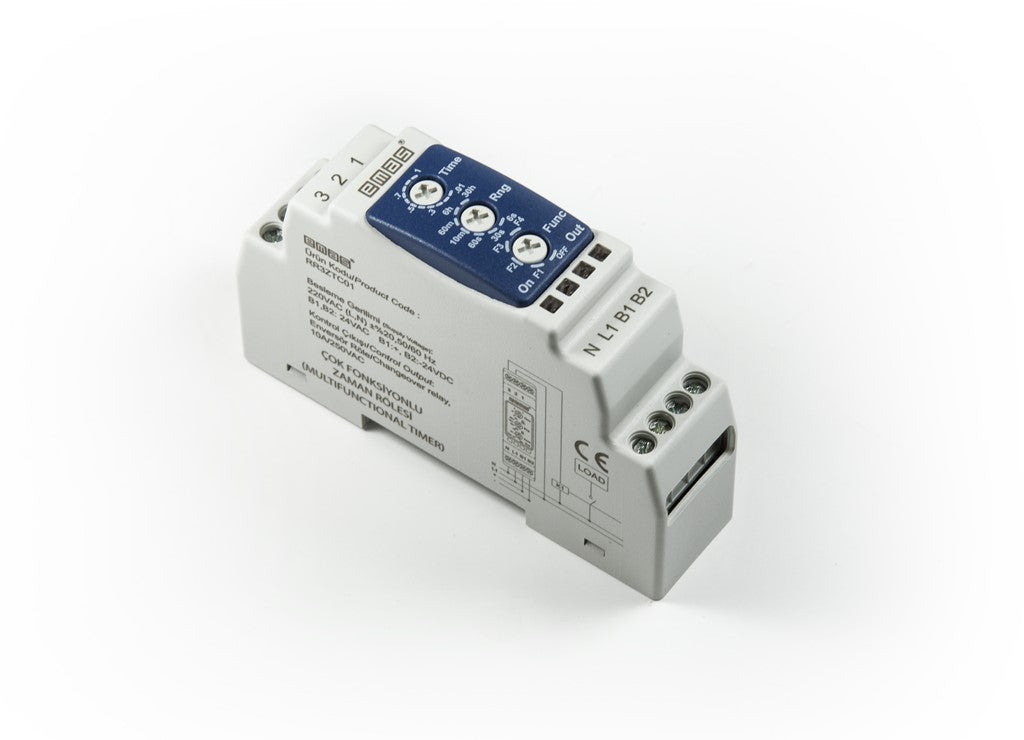

RR3 Series 24VAC/DC-230VAC 1CO 0,06sec-30hour Analog Time Electronic Relay
This analogue device from EMAS combines the main timing functions required within an electrical cabinet. Simple operation and setting make this an ideal replacement or leading brand alternative.
F1 - ON Delay
F2 - OFF Delay
F3 - ON/OFF Pulse (equal timing)
F4 - OFF/ON Pulse (equal timing)
Operational Frequency
50/60Hz
Operational Voltage
24VAC/DC-230VAC
Product
Electronic Relay
Control
Analog
Type
Time
Mounting
Rail Mount
Contact
1CO
Current (Ie)
10A (rezistif)
Power Consumption
< 7 VA
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Impulse Withstand Voltage (Uimp)
300V
Isolation Resistance
Min. 10 MOhm
Operating Temperature
-5°C...+55°C
Protection Degree
IP20
Output Type
2 pcs changeover relay 10A/250V AC
Time Interval
0,06sec-30hour
Serial
RR3 Series
