Global Innovation In PID Temperature & Process Control
Great for:
- Fast wireless setup via Bluetooth smartphone app
- Feature rich, powerful functions
- Ramp & Soak 20 Programs 9 Segments
- Advanced self-tuning algorithm
- Universal input as standard
- Versatile I/O and communications
- Compact size (1/16 DIN)
If you want to bring an existing process up to the latest specification or require a controller for a new project this is the perfect starting point. Big Brand performance and reliability at a highly competitive price. This is the latest innovation from Novus Automation for Temperature and Process Control. Combining the compact basic form of the N1030 with the advanced display of the N1050 and the high specification of the N1200 Series.
Wireless programming can be carried out with PC, Mobile or Tablet using the free configuration software and the built-in Bluetooth connection. QuickTune mobile is now available on Android and IOS.

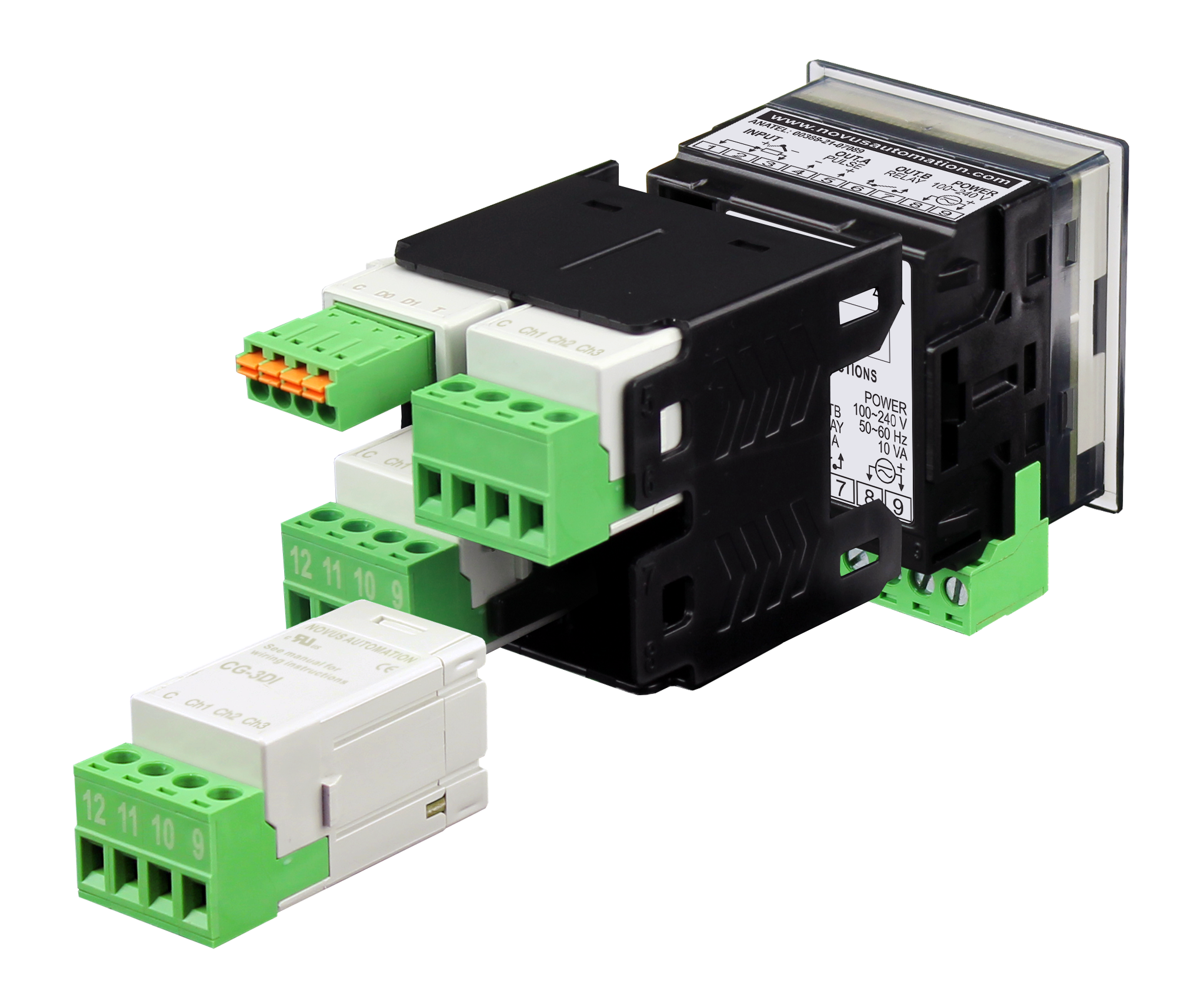

Configure your own controller...the N20K48 CPU will function as a standalone PID device with universal input and standard outputs for SSR and relay. The optional docker and ClickNGo modules are added depending on your application.
Suitable for: Ovens, Kilns, Industrial Applications, Drying, Curing, Melting, Annealing, Autoclaves & More!!!
What is the difference between a PID Temperature Controller and a PID Process Controller?
A process controller has a Universal Input and can apply the PID algorithm to a variety of industrial signals. Therefore it is possible to control Level, Pressure, Weights, Humidity and Speeds as well as the conventional Temperature Setpoints
Please contact us if your require any further information.
Novus N20K48 Datasheet Download
Novus N20K48 CAD Files Download
Novus N20K48 Modbus Register Download
MPN 820K481010

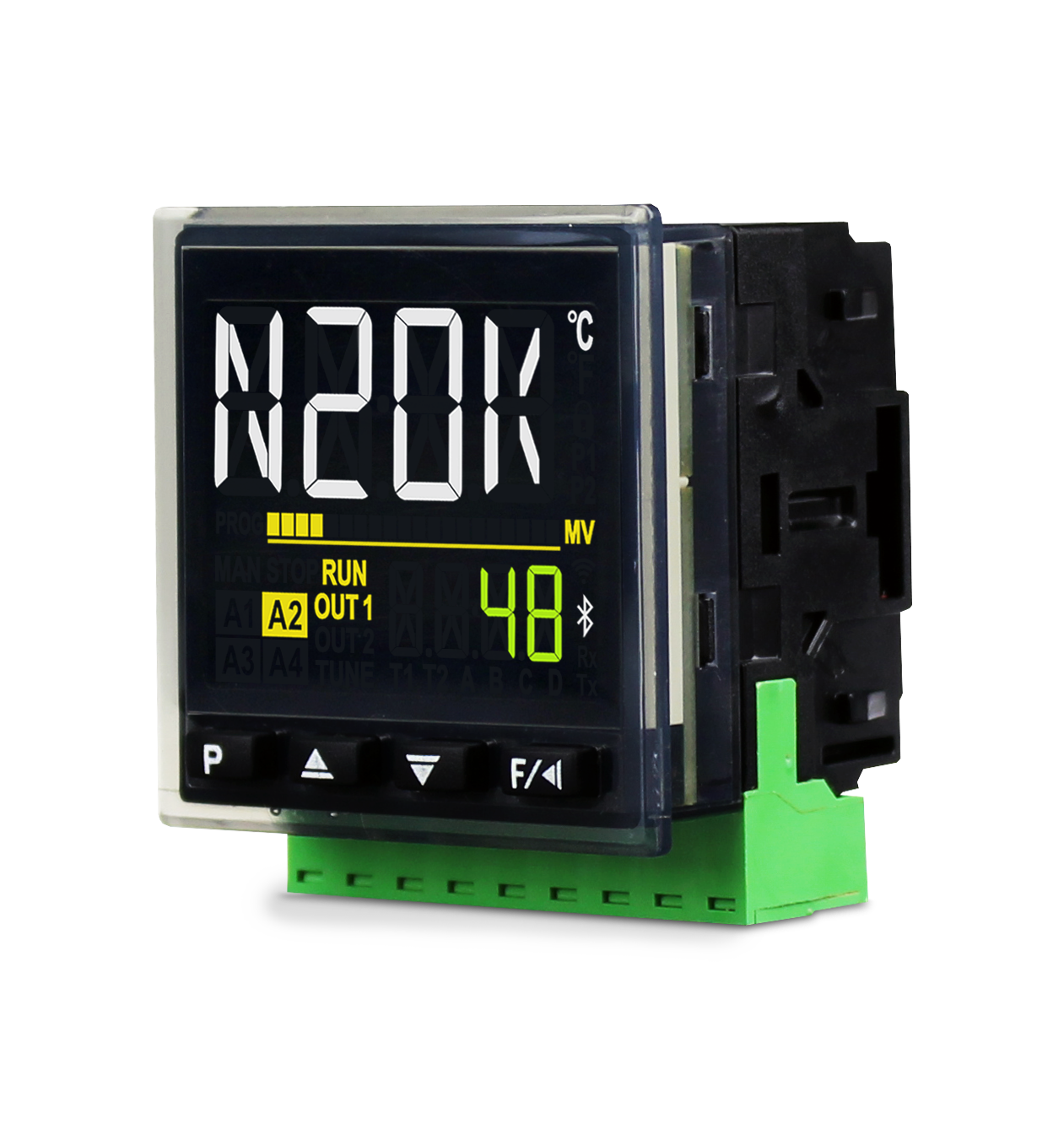

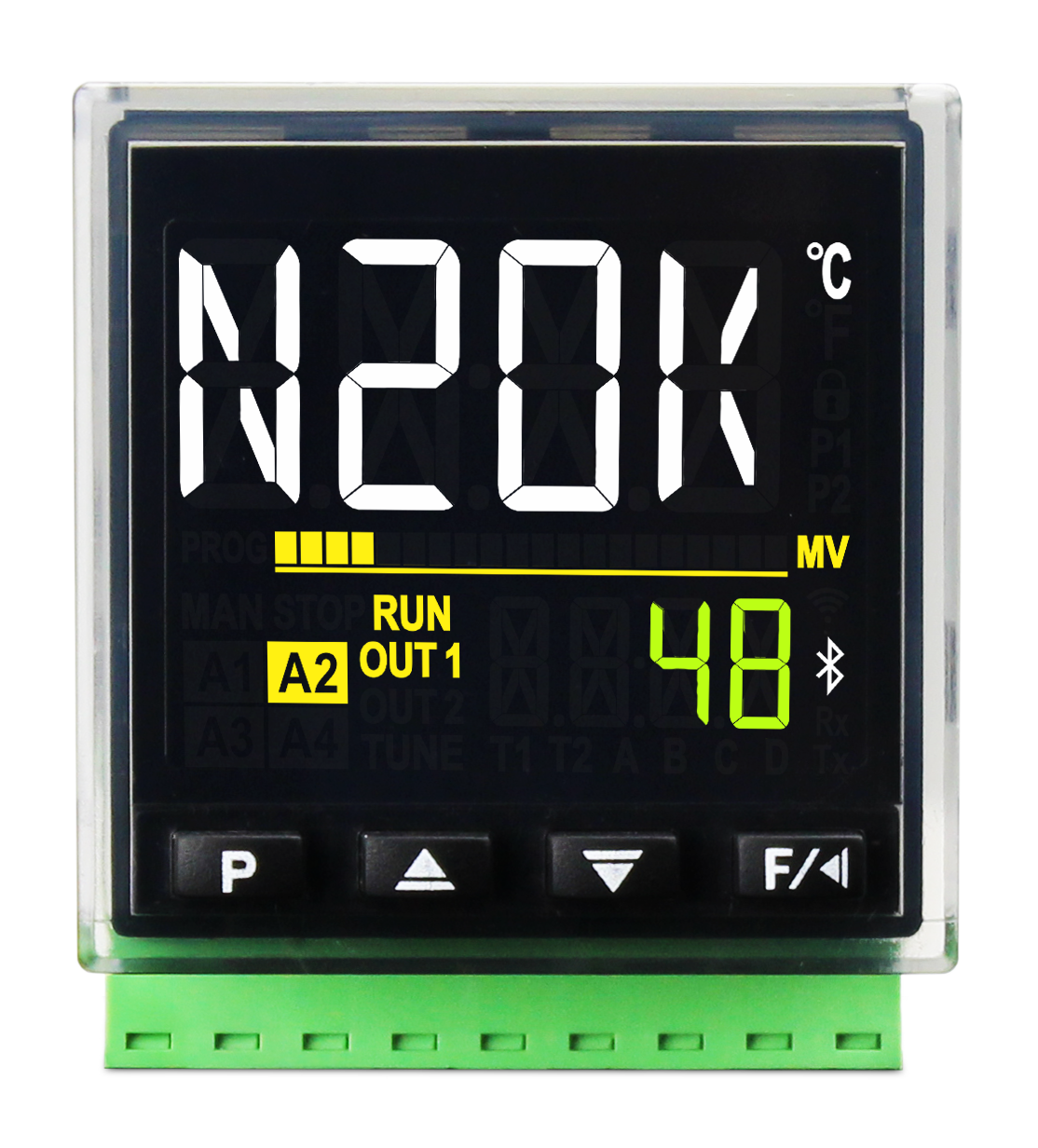

Display: LCD type, alphanumeric with 11 segments.
Input Type: Thermoucouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V and 4-20 mA.
PID Features: PWM, Auto tune
Control Action: 1 Loop (Heat or Cool)

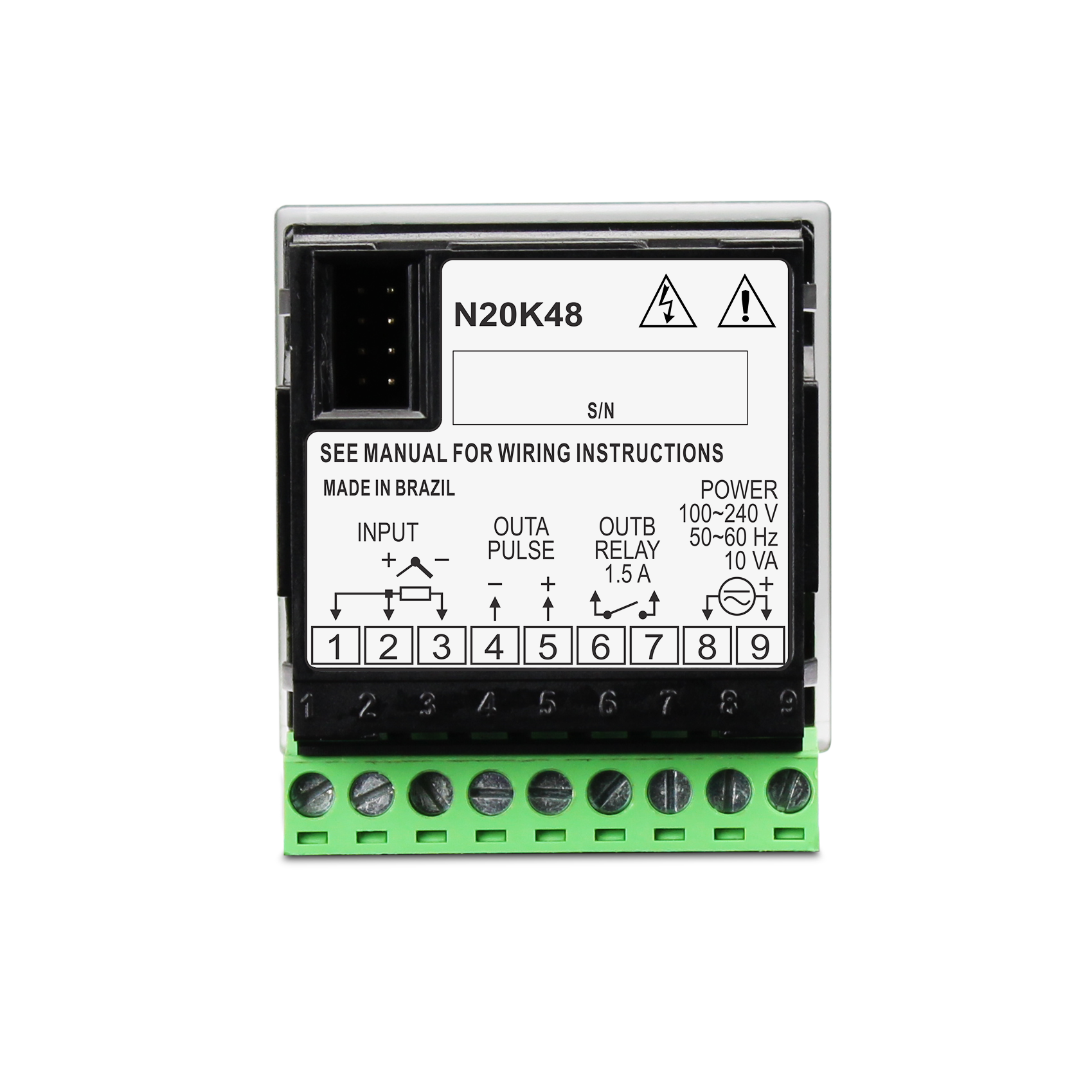

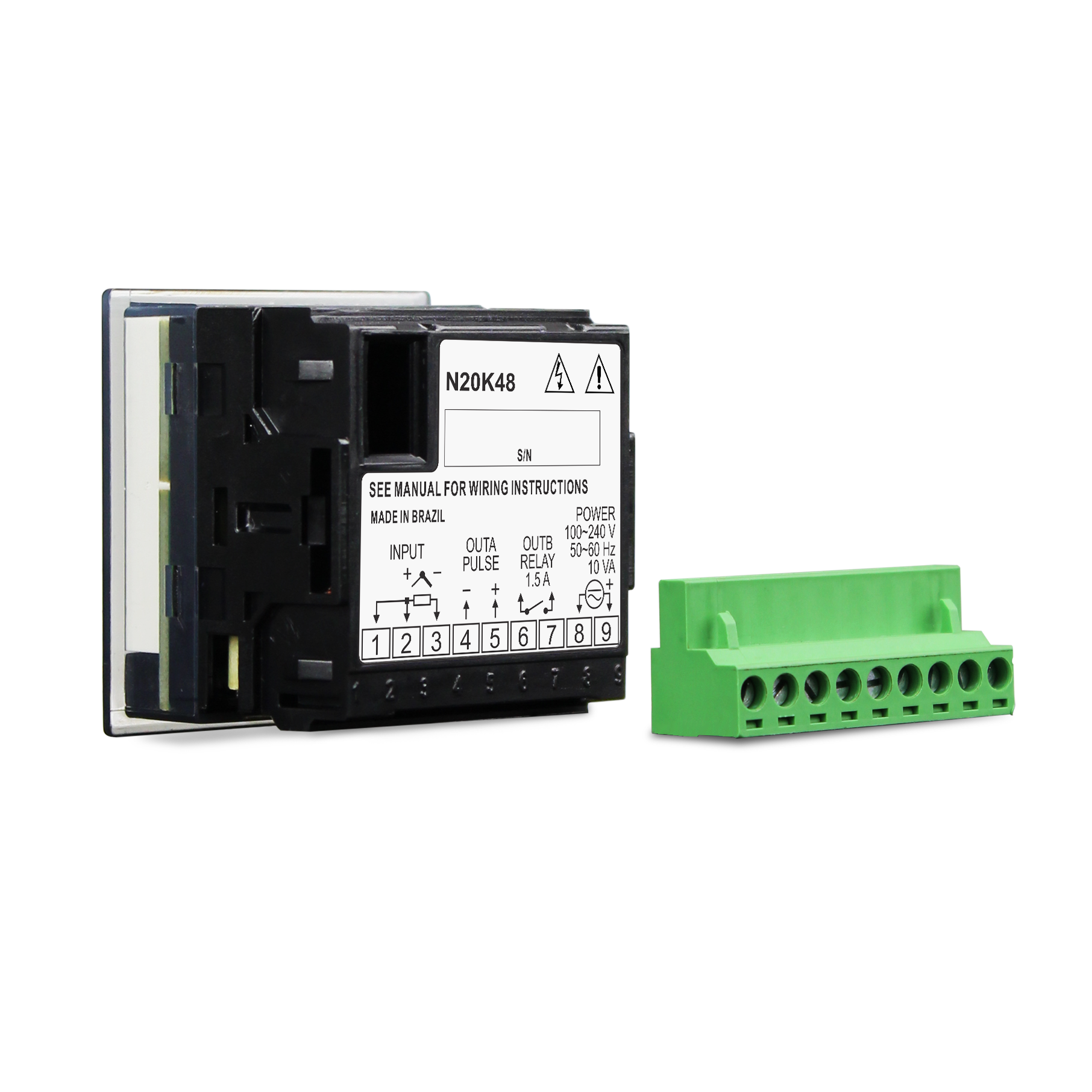

Output Control:1 Pulse and up to 1 Relay
Ramp & Soak: 20 Programs, 9 Segments
Sampling Period: 18 ms
Communication: RS485 Modbus RTU (optional)
Power Consumption: 10 VA
Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function
Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth
Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional)
Operate Conditions: Temperature: 5 to 60 °C ( 41 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
Front Panel: IP65, Polycarbonate (PC) UL94 V-2
Enclosure: 48x48 (DIN 1/16), ABS+PC UL94 V-0
